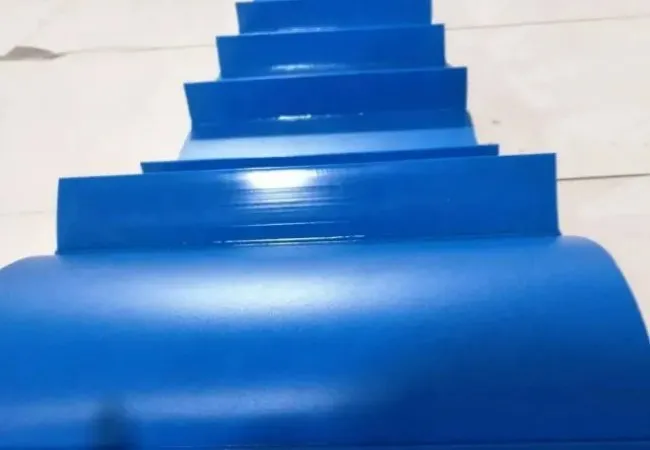

PVC Cleated Belts
The PVC cleated belts can realize high angle conveying. The conveyor using cleated belts only needs to occupy a small space. We use advanced High frequency welded machine to weld the cleat & sidewall profiles. The high frequency welding process creates a strong, consistent bond between two polymers.
How to Choose PVC Cleated Belts?
For Cleated Conveyor Belts, normally we produce according to customers drawings. If there is no drawing, you can tell us the belts requirement, such as:
- belt thickness
- belt length
- belt width
- belt color
- belt feature
- belt cleat size
- Others.
What are The Features?

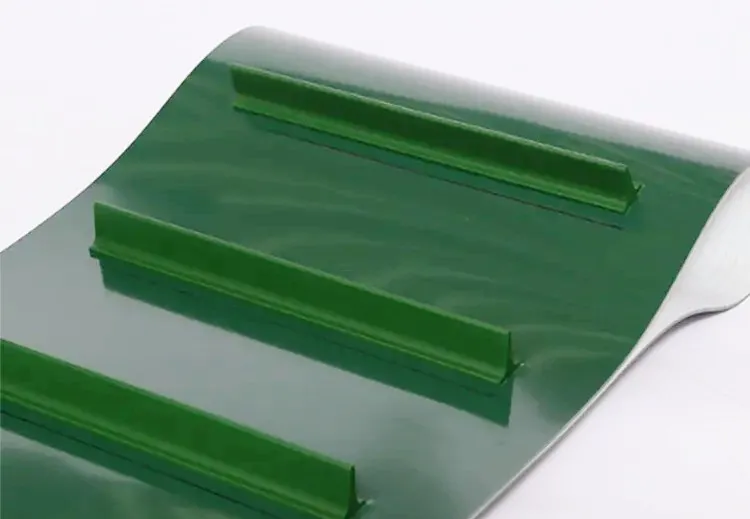

The cleats are mainly welded onto base PVC belt. We use advanced High frequency welded machine to weld the cleat & sidewall profiles. The high frequency welding process creates a strong, consistent bond between two polymers. Our PVC cleated belts has many features:- A Long service life.
- Easy to clean.
- A variety of sizes, colors & thicknesses available.
- Custom cleats & sidewalls available for various applications.
Data Sheet of PVC Cleated Belts
| Materials | PVC |
| Layers | 1-5ply |
| Width | ~3000mm |
| Thickness | 1-10mm |
| Color | White/Blue/Green/Black/Dark Green etc. |
PVC Cleats Data Sheet
Each Type of PVC Cleats can meet a certain conveying conditions. We provide three types of cleats like T Series, X Series, and W Series.

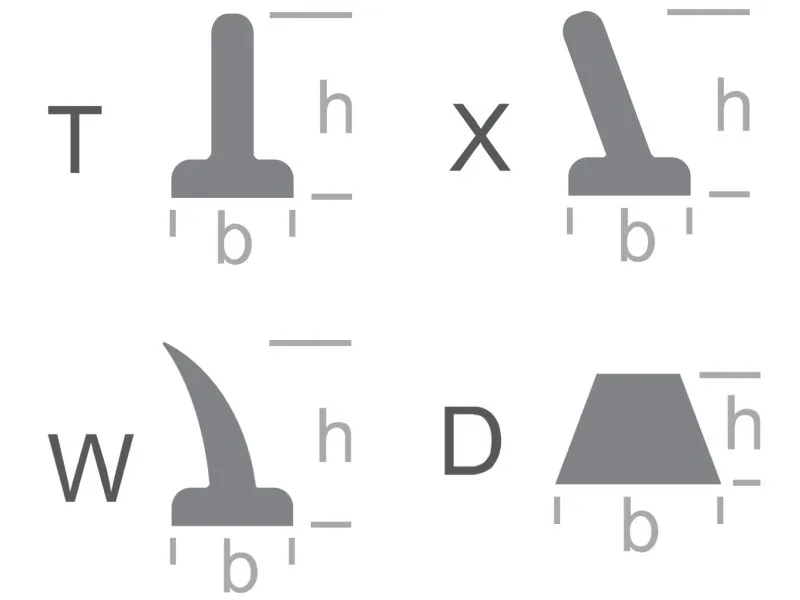

T Series Cleats, X Series Cleats, W Series Cleats, and D Series V-guides for PVC Cleated Belt
| PVC Cleats | |||
| Model | Hardness (ShoreA) | Dimension bxh (mm) | Min. Pulley Diameter (mm) |
| T10 | 60 | 10x10 | 40 |
| T20 | 20x20 | 90 | |
| T30 | 25x30 | 120 | |
| T40 | 25x40 | 120 | |
| T50 | 25x50 | 120 | |
| T60 | 40x60 | 150 | |
| T75 | 45x75 | 160 | |
| T80 | 47x80 | 180 | |
| X30 | 25x30 | 40 | |
| X40 | 30x40 | 60 | |
| X50 | 30x50 | 80 | |
| X60 | 35x60 | 80 | |
| X70 | 40x70 | 100 | |
| X80 | 43x80 | 120 | |
| W35 | 28x35 | 130 | |
