Sugar Conveyor Belt

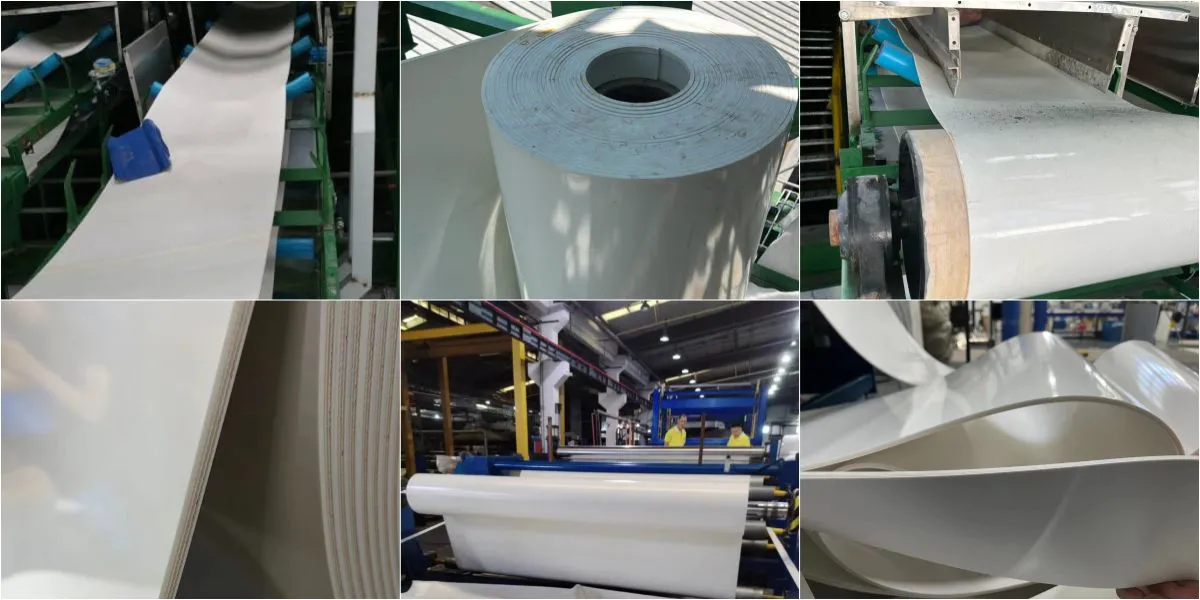

Inbelts provide sugar conveyor belt across from sugar beet (sugar cane) to crystal sugar sand, and we can provide the right sugar industry conveyor belts for you. Here we list some PVC conveyor belts for sugar refine industries. Our PVC sugar conveyor belts can be troughed, straight or inclined. We can provide both open edge and sealed Edge Belts for Sugar Refine Mill.

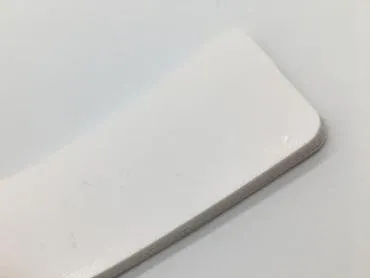

7.8mm PVC Conveyor Belt for Sugar

7.8mm PVC Conveyor Belt for Sugar

The fabric tension layer is three ply flexible polyester. The PVC belt thickness is 7.8mm. This PVC conveyor belt is used in crystal sugar refining industry.
5.8mm PVC Conveyor Belt for Sugar

5.8mm PVC Conveyor Belt for Sugar

The fabric tension layer is three ply flexible polyester. The PVC belt thickness is 5.8mm. This PVC conveyor belt is used in crystal sugar refining industry.
5.0mm PVC Conveyor Belt for Sugar

5.0mm PVC Conveyor Belt for Sugar

The fabric tension layer is two ply flexible polyester. The PVC belt thickness is 5.0mm. This PVC conveyor belt is used in crystal sugar refining industry.

PVC Conveyor Belts for Sugar Industry

Sugar Conveyor Belts Features

The PVC Covers of Sugar Refine Conveyor Belt can provide more specific and efficient formulations compared to rubber and can match perfectly the requirements of the sugar industry. In sugar mill, the conveying of crystal sugar is abrasive process and the sugar conveyor belt damage may occur and it may cause safety issues. The fire and combustion have to be avoided. Refined sugar belts require:

  • Anti-static (10^8 ohms or Higher Standard).
  • Food Grade Belts (Comply with FDA Regulations or Others).
  • Abrasion Resistant.
  • Flame Retardant.
  • Explosion Resistance (as sugar dust, related to anti-static performance, do not accumulate static electricity and prevent sparks).

Types of Sugar Conveyor Belts

The sugar conveyor belt needs high production standard. The edge of conveyor belt may need to be sealed in some projects (depending on customer's requirement). We can provide both open edge and sealed Edge Belts for Sugar Refine Mill.

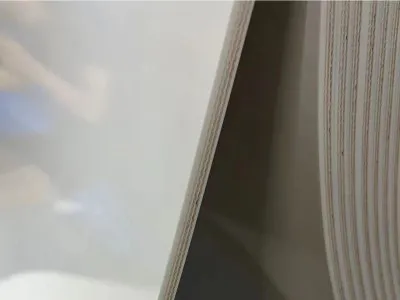

  • Open Edge Conveyor Belts

    The edge of PVC belt is open. And we can see the fabric tension layer. The working life is shorter than the edge sealed belt.

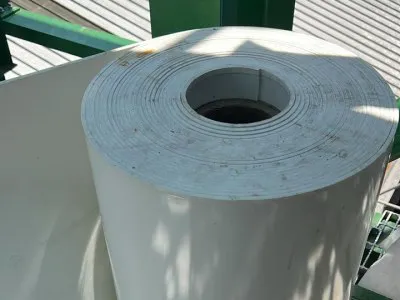

  • Sealed Edge Conveyor Belts

    The edge of PVC belt is sealed. And we can't see the fabric tension layer. It can provide a high conveying quality and long working life.

Applications of Sugar Conveyor Belts

  • Transport of refined sugar and coarse sugar.
  • Used in trough, horizontal or inclined conveyors.
  • Conveying Sugar Beet and Sugar Cane.
  • Crystal Sugar Stockpiling and Storage and Package

Some Regulations to Be Followed

These are some regulations about sugar refine conveyor belts.

  • FDA, EU, and GB 4806.7-2016 (Chinese) Regulation
  • Abrasion Resistant (ISO 5470-1)
  • Anti-static (ISO 21178)
  • ATEX cat. 2 Approved
  • Flame retardant (ISO 340)

Features

Inbelts provides pvc conveyor belts for sugar refine Industry. Our crystal sugar belts comply with the food regulations FDA and EU and GB 4806.7-2016 (Chinese).
  • Compliance with Food Grade Regulations

    Inbelts's sugar belt can contact crystal sugar directly.
  • Antistatic

    Do not accumulate static electricity and prevent sparks.
  • High Abrasive

    Inbelts can conveying crystal sugar and have long working life.
  • Flame Resistant

    In some projects, sugar belt needs to be flame resistant.
