When it comes to the Marble and Ceramic industries, it's the belts that drive production.Inbelts provide marble and ceramic processing belting that can hep to improve product quality, reduce maintenance times and reduce the manufacturing costs. We have saw toothed pattern marble conveyor belts, grip, dot and Matt patterns marble conveyor belts for processing lines.
Marble Belts Models

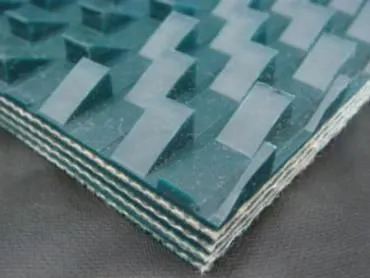

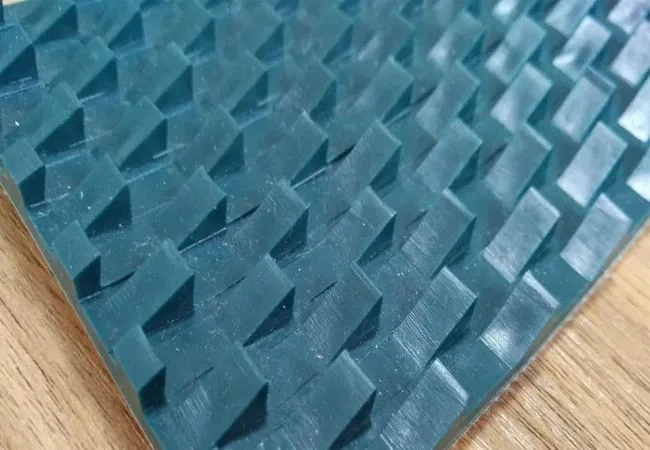

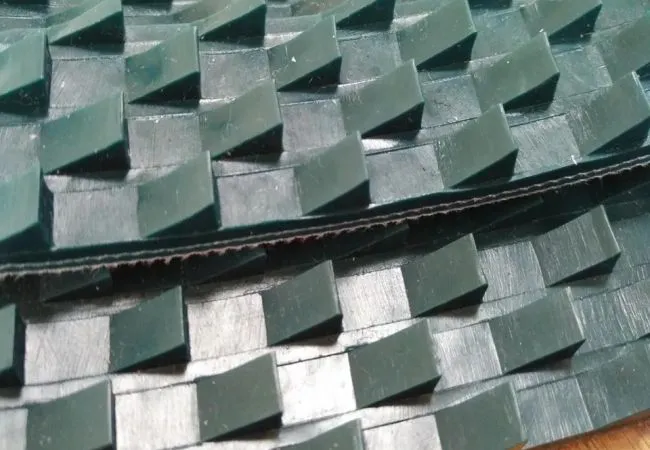

Saw Tooth Marble Conveyor Belt
Model: IP42-75/23
Color: Petrol Green
Thickness: 12.5mm
Layers: 2
Top Surface: Saw Tooth
Bottom Surface: High Tensile Fabric
Total Weight(Kg/㎡): ~
Top Coating Hardness(ShoreA): 55
Tension 1% Elongation(N/mm): 77
Min. Pulley Dia.(mm): 450
Max. Width(mm): 3000
Working Temperature(℃): -15/+80

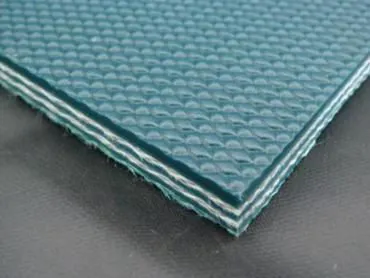

Low Grip Marble Conveyor Belt(8.5mm)
Model: IP39-76/25
Color: Petrol Green
Thickness: 8.5mm
Layers: 3
Top Surface:Low Grip
Bottom Surface: High Tensile Fabric
Total Weight(Kg/㎡): ~
Top Coating Hardness(ShoreA): 74
Tension 1% Elongation(N/mm): 50
Min. Pulley Dia.(mm): 350
Max. Width(mm): 3000
Working Temperature(℃): -15/+80

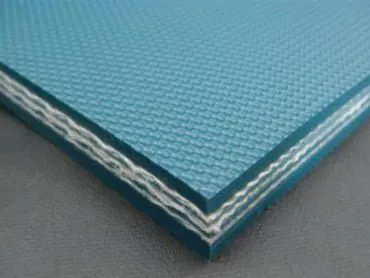

Low Grip Marble Conveyor Belt(12.5mm)
Model: IP39-79/15
Color: Petrol Green
Thickness: 12.5mm
Layers: 3
Top Surface: Low Grip
Bottom Surface: Smooth
Total Weight(Kg/㎡): ~
Top Coating Hardness(ShoreA): 55
Tension 1% Elongation(N/mm): 70
Min. Pulley Dia.(mm): 450
Max. Width(mm): 3000
Working Temperature(℃): -15/+80

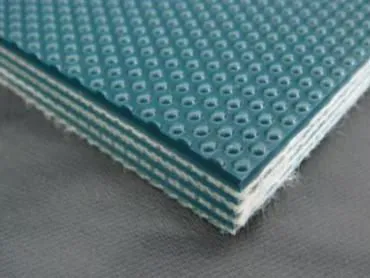

Marble Conveyor Belt Dot Pattern
Model: IP49-76/4
Color: Petrol Green
Thickness: 12.5mm
Layers: 4
Top Surface: Dot
Bottom Surface: Smooth
Total Weight(Kg/㎡): ~
Top Coating Hardness(ShoreA): 55
Tension 1% Elongation(N/mm): 77
Min. Pulley Dia.(mm): 450
Max. Width(mm): 3000
Working Temperature(℃): -15/+80

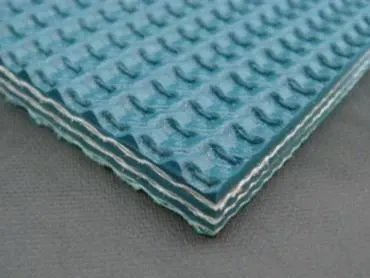

Marble Conveyor Belt Grip Pattern
Model: IP39-79/3
Color: Petrol Green
Thickness: 8.5mm
Layers: 3
Top Surface: Grip
Bottom Surface: High Tensile Fabric
Total Weight(Kg/㎡): ~
Top Coating Hardness(ShoreA): 74
Tension 1% Elongation(N/mm): 50
Min. Pulley Dia.(mm): 350
Max. Width(mm): 3000
Working Temperature(℃): -15/+80

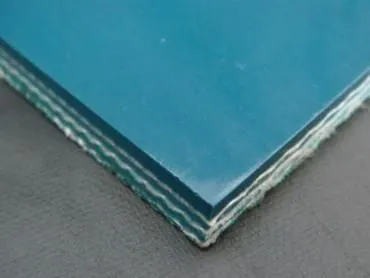

Marble Conveyor Belt Matt Pattern
Model: IP39-79/2
Color: Petrol Green
Thickness: 8.5mm
Layers: 3
Top Surface: Matt
Bottom Surface: High Tensile Fabric
Total Weight(Kg/㎡): ~
Top Coating Hardness(ShoreA): 74
Tension 1% Elongation(N/mm): 50
Min. Pulley Dia.(mm): 350
Max. Width(mm): 3000
Working Temperature(℃): -15/+80
Applications
Inbelts develops durable and precise performance belting solutions for the entire range of production applications of both natural and synthetic stone processing, including:
- block cutting and splitting
- calibration and slab polishing
- chamfering and edge polishing
- mixing and dosing raw materials
- forming engineered slabs in the production of synthetic materials
Features
- High Resistance in Cutting.
- Good Abrasion Resistance
- High Breaking Strength
- Different Thickness & Patterns Range.
- Custom Made Production
