Corrugated Sidewall PVC Belts

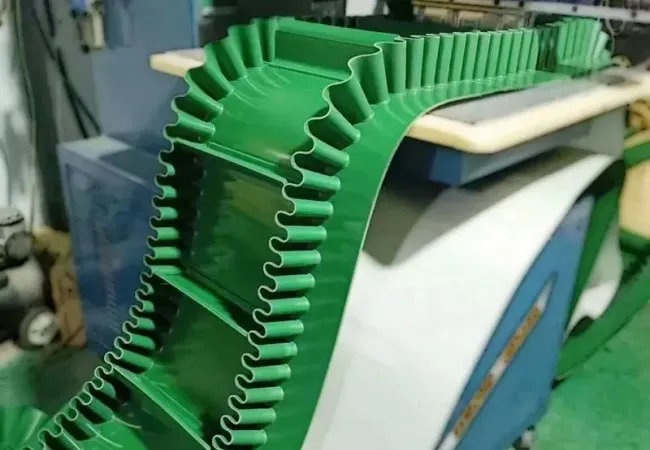

Corrugated sidewall PVC belt act as a barrier to keep materials from falling off the belt and is ideal for situations where products convey on an incline or decline. A sidewall conveyor belt is composed of corrugated sidewall, cleats, and base belt.In some situation, the sidewall belt has no cleats. You can see the simple structure of PVC Sidewall Belt.

Structure of PVC Sidewall Belts

How To Choose PVC Sidewall Belts?

For PVC Sidewall Conveyor Belts, normally we produce according to customers drawings.  If there is no drawing, you can tell us the belts requirement, such as:

• belt thickness
• belt length
• belt width
• belt color
• belt feature
• belt cleat size
• the distance between cleats
• PVC sidewall size and height.

What Are the Features?

• These PVC Sidewall belts are used for carrying material to feeders, hoppers, processing machine depending on application.
• Material can be carried without spillage.
• Movement is smooth and noise is very less when compared to conventional elevators.
• A Long service life.
• Easy to clean.
• A variety of sizes, colors & thicknesses available.
• Custom cleats & sidewalls available for various applications.

Data Sheet of PVC Sidewall Belts

Main Data

There are main 3 types of PVC belt cleats and 1 type of V-guids. They are important part of a PVC sidewall conveyor belt. You can check the height and width of cleats and guids here.

PVC Guides and Cleats

T Series Cleats, X Series Cleats, W Series Cleats, and D Series V-guides

PVC Sidewall

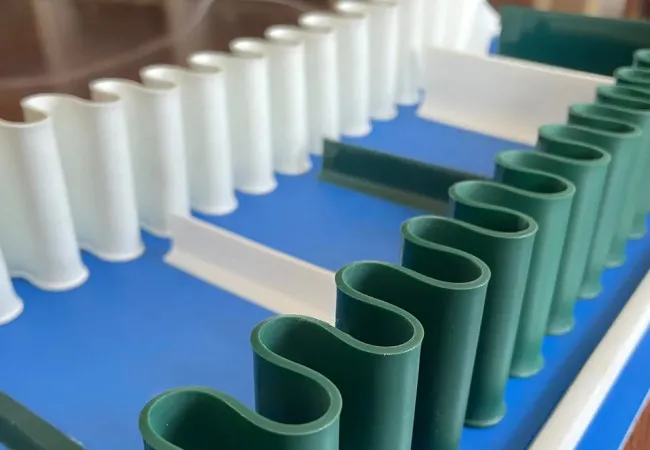

The corrugated sidewall will help the cleate belt to form a small bucket. It will make the material conveyed without spillage.

Corrugated Sidewall of PVC Sidewall Belt
