PU Sidewall Belt and TPU Sidewall Belt

A TPU sidewall conveyor belt, or PU sidewall conveyor belt, is composed of corrugated sidewall, cleats, and base belt.In some situation, the sidewall belt has no cleats. You can see the simple structure of PU and TPU Sidewall Belt. Inbelts has a wide variety of Sidewall Conveyor Belt options to maximize your product yield and keep loss at a minimum.

PU Sidewall Belt and TPU Sidewall Belt
PU Sidewall Belt and TPU Sidewall Belt

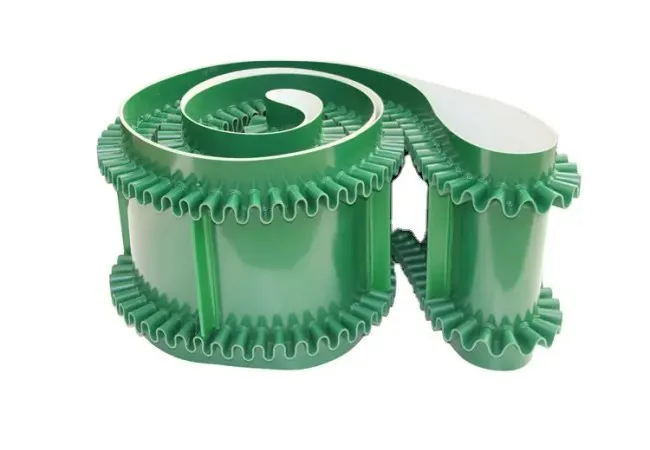

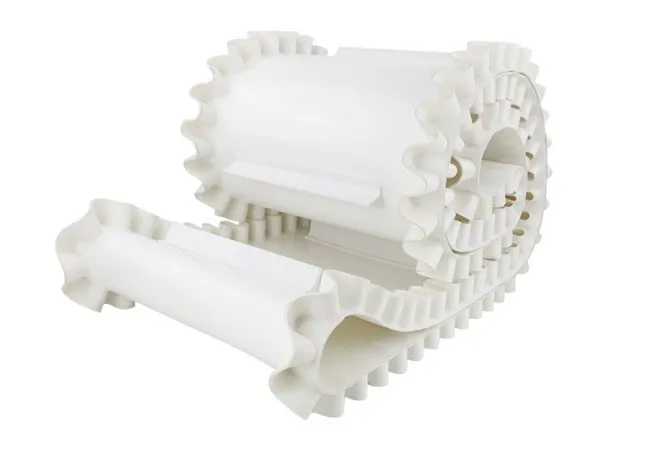

Corrugated sidewall TPU (thermoplastic polyurethane) or PU (Polyurethane) belt act as a barrier to keep materials from falling off the belt and is ideal for situations where products convey on an incline or decline. A sidewall conveyor belt is composed of corrugated sidewall, cleats, and base belt.In some situation, the sidewall belt has no cleats. You can see the simple structure of TPU and PU Sidewall Belt.



Structure of PU and TPU Sidewall Belts

How to Choose TPU and PU Sidewall Belts?

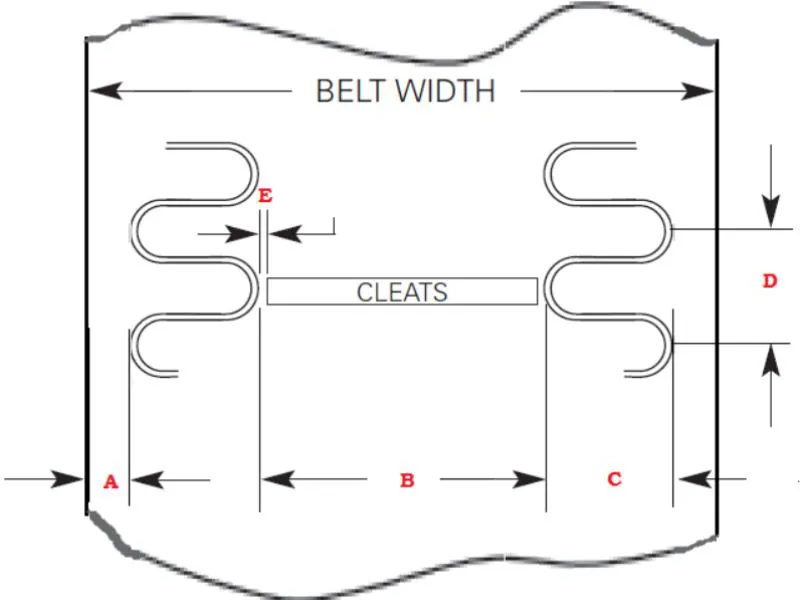

For TPU and PU Sidewall Conveyor Belts, normally we produce according to customers drawings. If there is no drawing, you can tell us the belts requirement, such as:

  • belt thickness
  • belt length
  • belt width
  • belt color
  • belt feature
  • belt cleat size
  • the distance between cleats
  • TPU or PU sidewall size and height.

What Are the Features?

  • These Sidewall belts are used for carrying material to feeders, hoppers, processing machine depending on application.
  • Material can be carried without spillage.
  • Movement is smooth and noise is very less when compared to conventional elevators.
  • A Long service life.
  • Easy to clean.
  • A variety of sizes, colors & thicknesses available.
  • Custom cleats & sidewalls available for various applications.

Data Sheet of PU and TPU Sidewall Belts

Main Data

Materials TPU or PU
Layers 1-3ply
Width ~3000mm
Thickness 0.7-6.3mm
Color White/Blue/Green/Black/Dark Green etc.

TPU and PU Guides and Cleats



UT Series Cleats for Sidewall TPU and PU Belts

TPU Cleats and PU Cleates
Model Hardness (ShoreA) Dimension bxh (mm) Min. Pulley Diameter (mm)
UT10 86 8x10 30
UT20 10x20 35
UT30 15x30 40
UT40 15x40 40

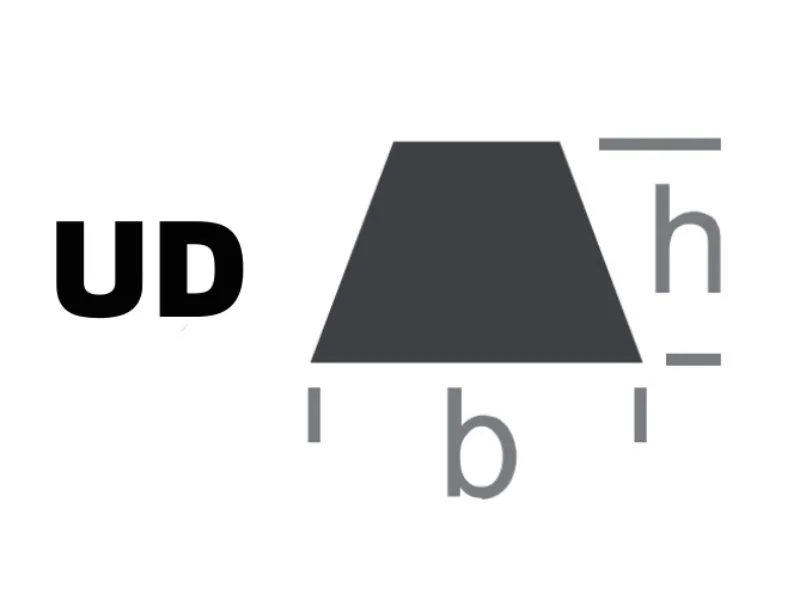

UD Series V-guides for Sidewall TPU and PU Belts

TPU V-Guides and PU V-Guides
Model Hardness (ShoreA) Dimension bxh (mm) Min. Pulley Diameter (mm)
UD6 65 6x4 120
UD8 8x5 120
UD10 10x6 120
UD13 13x8 100/70

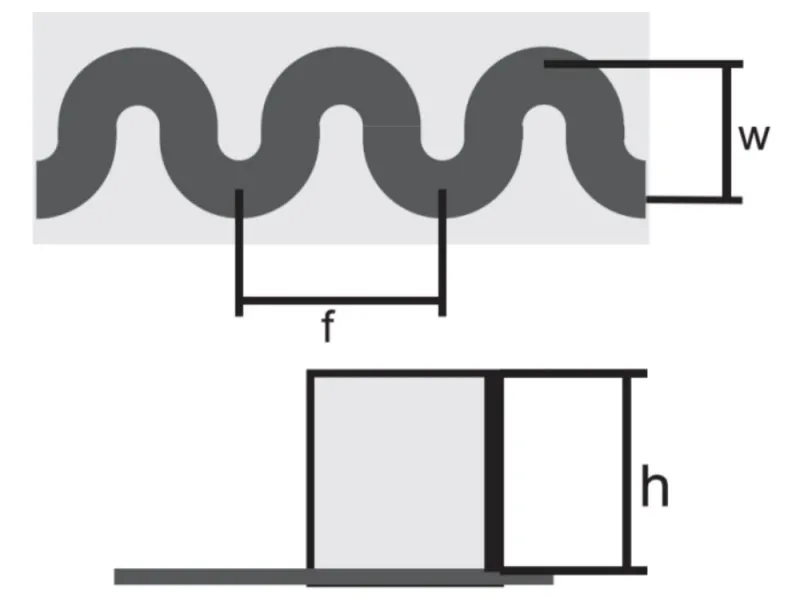

TPU and PU Sidewalls

The corrugated sidewall will help the cleated belt to form a small bucket. It will make the material conveyed without spillage.

Corrugated Sidewall of TPU and PU Sidewall Belt

TPU Sidewall or PU Sidewall
Model Hardness (ShoreA) Thickness (mm) Dimension wxfxh (mm) Min. Pulley Diameter (mm)
USW13-20 86 1.3 20x24x20 30
USW13-25 20x24x25 40
USW13-30 20x24x30 50
USW13-35 20x24x35 60
