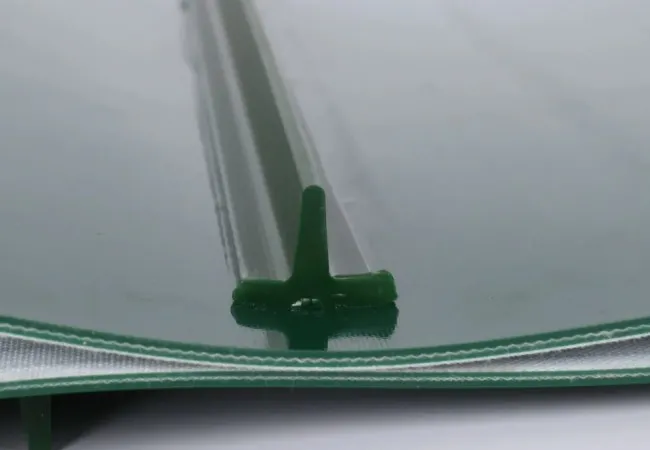

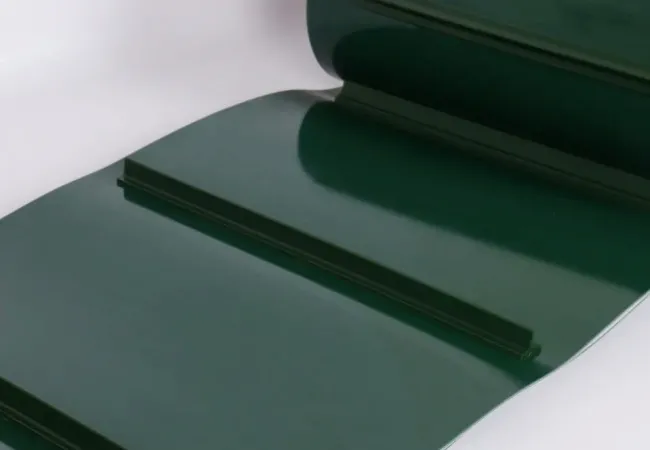

PU Cleated Belt and TPU Cleated Belt

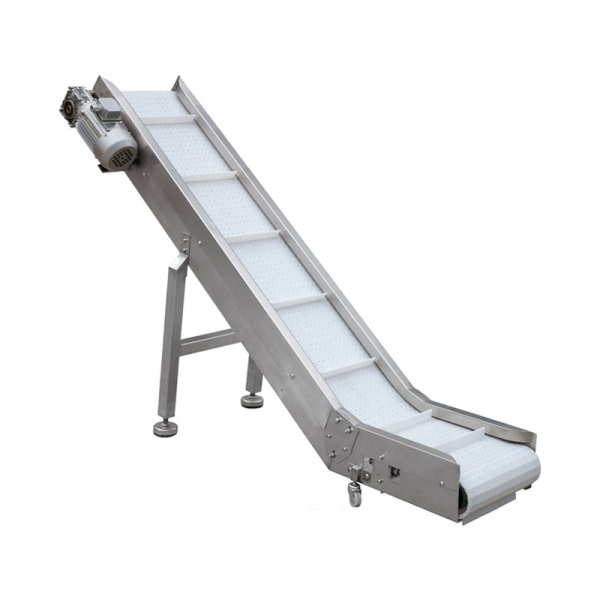

The Cleated PU belts and TPU belts can realize high angle conveying. The conveyor using cleated belts only needs to occupy a small space. We use advanced high frequency welded machine to weld the cleat & sidewall profiles. The high frequency welding process creates a strong, consistent bond between two polymers.

PU Cleated Belt and TPU Cleated Belt
PU Cleated Belt and TPU Cleated Belt

How to Choose Cleated TPU Belts or Cleated PU Belts ?

For Cleated TPU and PU Conveyor Belts, normally we produce according to customers drawings. If there is no drawing, you can tell us the belts requirement, such as:

  • belt thickness
  • belt length
  • belt width
  • belt color
  • belt feature
  • belt cleat size
  • Others.

What are The Features?

The cleats are mainly welded onto base PU belt and TPU belt. We use advanced High frequency welded machine to weld the cleat & sidewall profiles. The high frequency welding process creates a strong, consistent bond between two polymers. Our  cleated belts has many features:
  • A Long service life.
  • Easy to clean.
  • A variety of sizes, colors & thicknesses available.
  • Custom cleats & sidewalls available for various applications.

Data Sheet of TPU and PU Cleated Belts

Main Data Sheet

Materials TPU or PU
Layers 1-3ply
Width ~3000mm
Thickness 0.7-5.7mm
Color White/Blue/Green/Black/Dark Green etc.

TPU and PU Cleats Data Sheet

TPU and PU Belt just have one type of cleat. You can find the dimension of UT Series Cleats.

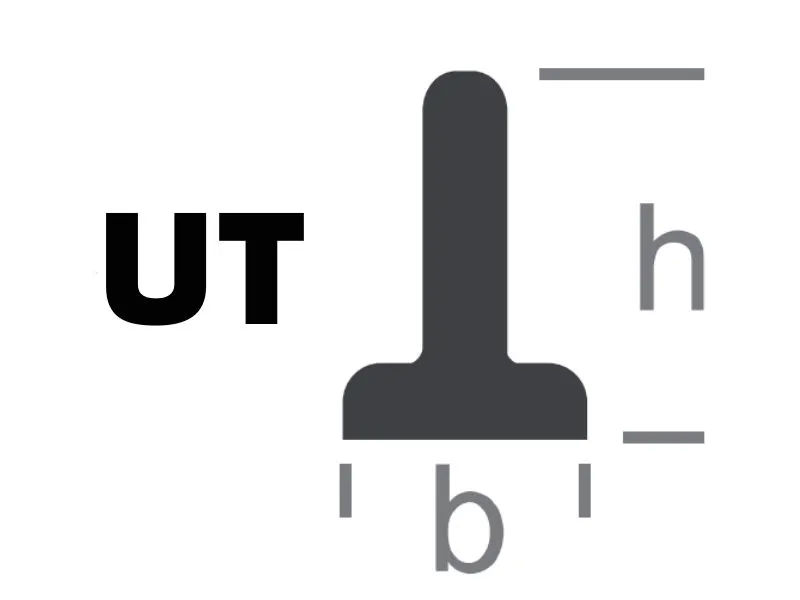

Structure of UT TPU Cleats for TPU Cleated Belts


TPU Cleats or PU Cleates
Model Hardness (ShoreA) Dimension bxh (mm) Min. Pulley Diameter (mm)
UT10 86 8x10 30
UT20 10x20 35
UT30 15x30 40
UT40 15x40 40

Related Products

Inbelts is professional conveyor belts manufacturer in China. You can get all this types of bearing from our company.

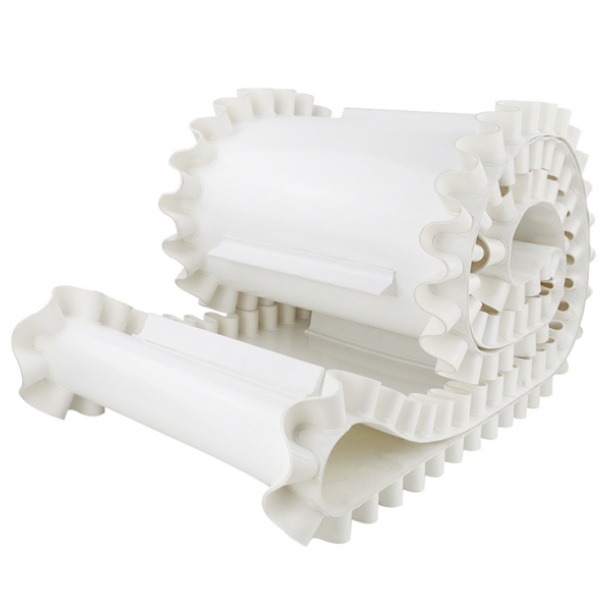

PU Sidewall Belt and TPU Sidewall Belt

PU Sidewall Belt and TPU Sidewall Belt

PU Cleated Belt and TPU Cleated Belt

PU Cleated Belt and TPU Cleated Belt

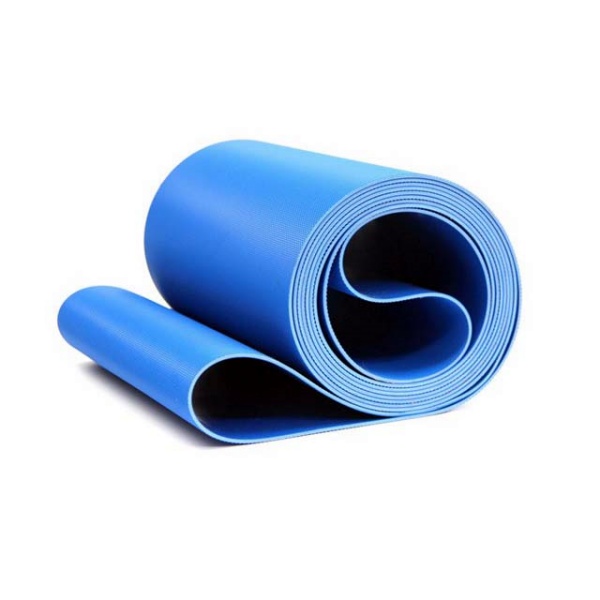

Polyurethane Belt and Thermoplastic Polyurethane Belt

Polyurethane Belt and Thermoplastic Polyurethane Belt

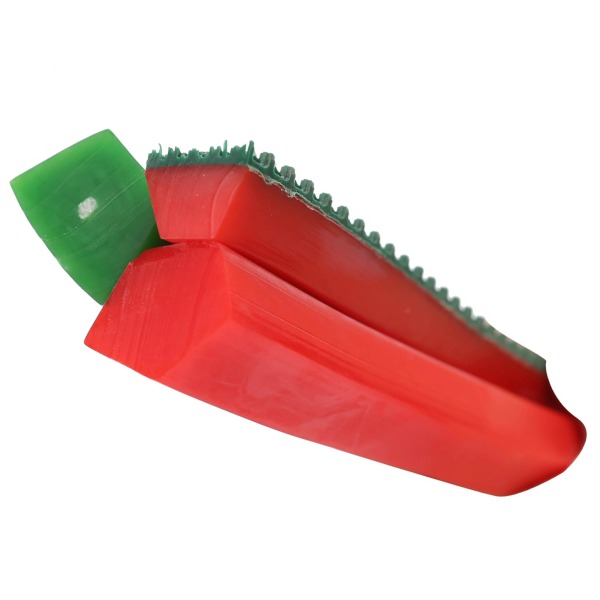

PU V Belts and TPU V Belts

PU V Belts and TPU V Belts

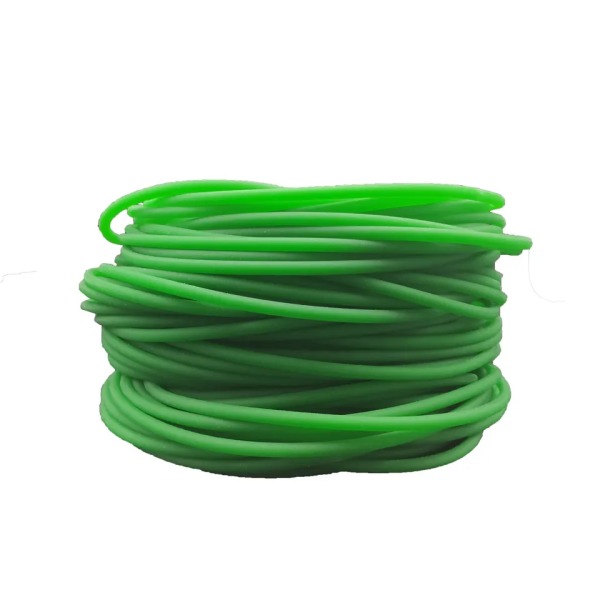

PU Round Belts and TPU Round Belts

PU Round Belts and TPU Round Belts

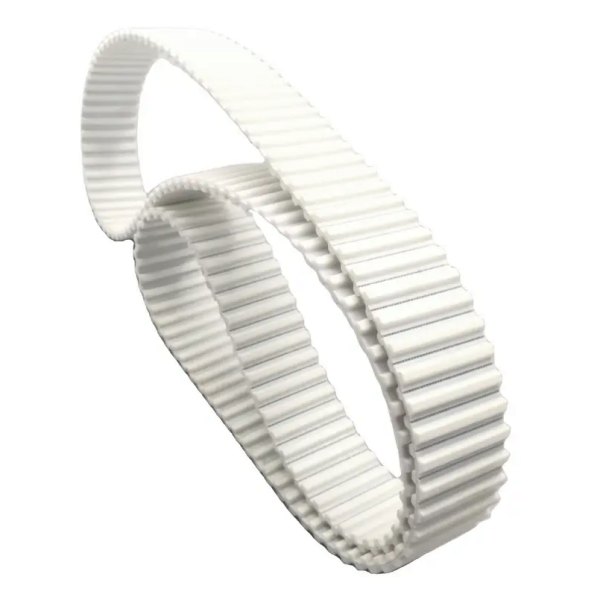

PU Timing Belts and TPU Timing Belts
