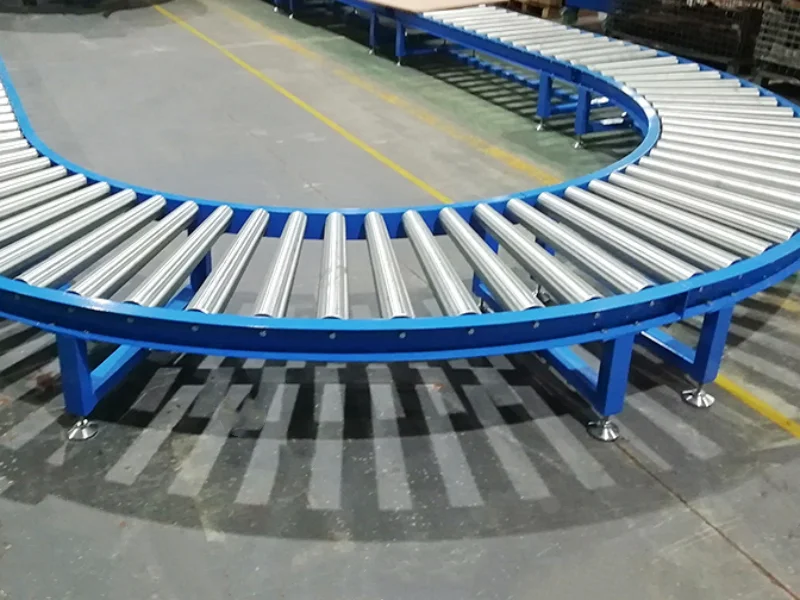

How to Choose a Curved Roller Conveyor?

Choosing the right curved roller conveyor for your application requires careful consideration of your operational needs, material characteristics, facility layout, and budget. A well-selected curved roller conveyor will ensure efficient material flow, fit your space, and meet performance requirements. Below is a step-by-step guide to help you make an informed decision.

1. Define Your Application Requirements

Purpose

Identify the curved roller conveyor's role (e.g., redirecting items, connecting straight sections, navigating obstacles). For example, moving boxes around a corner in a warehouse vs. redirecting parts in a production line.

Load Type

Determine the items to be transported (e.g., boxes, pallets, totes). Curved roller conveyors work best with flat-bottomed, stable items.

Weight Capacity

Estimate the maximum weight per item or total load (e.g., 50 lbs for light-duty, up to 1,000 lbs or more for heavy-duty). Ensure the conveyor can handle your heaviest load without strain.

2. Assess Material Characteristics

Item Size and Shape

Measure the dimensions (length, width, height) of your items. Items must span at least three rollers for stability (e.g., 12" long items need rollers spaced 4" apart or closer).

Surface

Check if items are smooth, rough, or fragile. Smooth, stable bases work best; irregular or small items may require a belt conveyor instead.

Weight Distribution

Ensure loads are evenly distributed to avoid tipping on the curve.

3. Determine Conveyor Specifications

Curve Angle

Choose the angle based on your layout (e.g., 30°, 45°, 90°, 180°). A 90° curve is common for right-angle turns; smaller angles suit gradual redirects.

Radius

Select the inner radius (e.g., 18"–48") based on space and item size. Larger radii accommodate wider items but take more space; smaller radii are compact but limit load width.

Width

Match the conveyor width to your widest item, adding a margin (e.g., 2–4 inches) for stability.  Light-duty: 12"–24"; heavy-duty: 24"–48" or more.

Roller Spacing

Set spacing to support items securely (e.g., 2"–6" centers). Closer spacing suits smaller or less stable items; wider spacing works for larger, stable loads.

4. Choose the Drive Type

• Gravity-Fed: Uses a slight incline (1–5°) to move items via gravity. Best for light loads, short distances, and low-cost applications. Requires height adjustment at one end.
• Powered: Motor-driven rollers (e.g., via belts, chains, or internal motors) for consistent movement. Ideal for heavier loads, precise control, or long runs.
• Options: Line shaft, chain-driven, or motorized rollers (e.g., 24V DC).
• Consider Speed: For powered systems, select a motor for desired speed (e.g., 30–100 ft/min), adjustable if needed.

5. Evaluate Facility Constraints

• Space: Measure available floor space and clearance for the curve. Check inner and outer radii against obstacles (e.g., walls, machines). A 90° curve with a 24" inner radius needs about 4–5 feet of space diagonally.
• Layout Integration: Ensure compatibility with existing conveyors or equipment. Match height (typically 24"–36" for ergonomics) and connect seamlessly with straight sections.
• Traffic Flow: Avoid blocking walkways or forklift paths with the conveyor's footprint.

6. Select Roller and Frame Materials

Rollers

• Steel: Durable, for moderate to heavy loads (e.g., boxes, totes).
• Plastic: Lightweight, corrosion-resistant, for delicate or light items.
• Tapered Rollers: Common in curves to maintain smooth flow (wider outside, narrower inside).

Frame

• Steel: Strong, durable, for industrial use; powder-coated to resist rust.
• Aluminum: Lightweight, corrosion-resistant, easier to move.
• Match to environment (e.g., stainless steel for washdown areas).

7. Factor in Load Dynamics

Speed Differential

The outer edge moves faster than the inner edge on a curve. Ensure items won't tip or shift—wider, stable loads fare better. Add side guides if needed for alignment.

Accumulation

Decide if items need to queue on the curve. Powered systems with zoned control (e.g., zero-pressure accumulation) allow accumulation; gravity systems don't.

8. Consider Safety and Ergonomics

• Safety Features: Include side guards, emergency stops, and roller covers (if powered) to protect operators and goods. Prevent items from falling or hands from getting caught.
• Height: Set the conveyor at a comfortable working level (e.g., 30"–36") for loading/unloading. Adjustable legs can optimize ergonomics.

9. Budget and Long-Term Costs

• Initial Cost: Gravity curved conveyors are cheaper ($500–$2,000); powered ones cost more ($2,000–$5,000+), depending on size and features. Balance features with affordability.
• Operating Cost: Powered systems use electricity; gravity systems don't. Energy-efficient motors (e.g., 24V DC) reduce costs.
• Maintenance: Gravity systems need little upkeep; powered systems require motor, belt, or chain maintenance. Choose accessible designs to minimize repair downtime.

10. Verify Industry Standards and Test Options

• Ensure compliance (e.g., OSHA for safety, FDA for food-grade if applicable).
• Stainless steel or specific coatings may be required.
• Share your load, layout, and speed needs with vendors (e.g., Hytrol, Dorner) for recommendations.
• Request a custom quote or CAD layout.
• If possible, test with your items to confirm stability and flow around the curve.

Example Decision Process

• Scenario: A warehouse needs to redirect 10-lb boxes (12" x 10") around a 90° corner from a straight conveyor to a packing station, 5 feet away.
• Load: 10 lbs, light-duty suitable.
• Angle/Radius: 90°, 24" inner radius fits space and box size.
• Width: 18" wide (12" box + margin).
• Drive: Powered, 40 ft/min, chain-driven for consistency.
• Rollers: Steel, 3" spacing (box spans 4 rollers).
• Frame: Aluminum for lightweight durability.
• Features: Side guides, emergency stop.
• Budget: Targets $3,000, prioritizing reliability.
• Choice: A powered curved roller conveyor with tapered rollers and basic controls.

Final Tips of Choosing Roller Conveyor

• Prioritize Stability: Ensure your items won't tip on the curve—test if unsure.
• Modular Design: Opt for a system that can expand or connect to future conveyors.
• Compare Vendors: Get quotes from multiple suppliers to balance cost and quality.

By following these steps, you can select a curved roller conveyor that efficiently meets your needs while fitting your facility and budget. If you have a specific scenario or need help with calculations (e.g., radius, roller spacing), let me know!
