A telescopic belt conveyor consists of a series of belt conveyor sections nested within each other. And it is a retractable, extendable conveyor system designed to load and unload goods efficiently from trucks, trailers, containers, and warehouse shelves. We can offer telescopic conveyor solutions for truck loading unloading, container loading unloading and warehouse stacking.
Telescopic Belt Conveyor

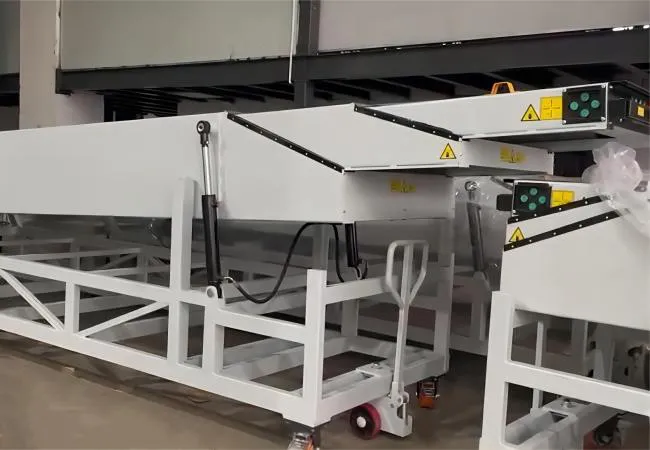

ITBC Series Telescopic Belt Conveyor
The ITBC Series Inclined Telescopic Belt Conveyors are mounted on wheels. The ITBC portable telescopic belt conveyor can be 3 stages or 4 stages.

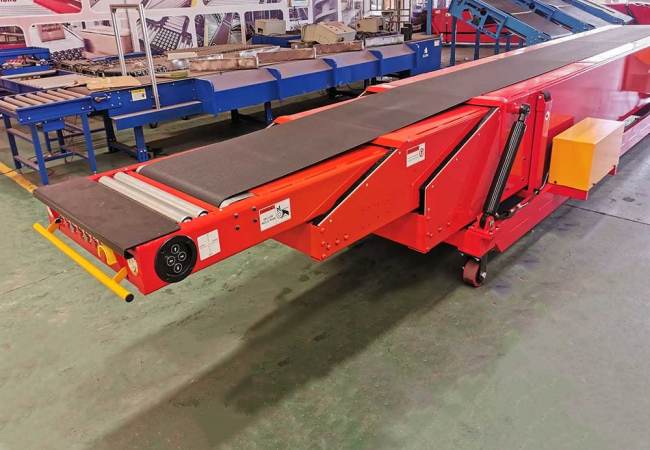

MTBC Series Telescopic Belt Conveyor
This MTBC series portable telescopic belt conveyor are mounted wheels, and it can be 3 stages or 4 stages. It can be moved freely by your workers.

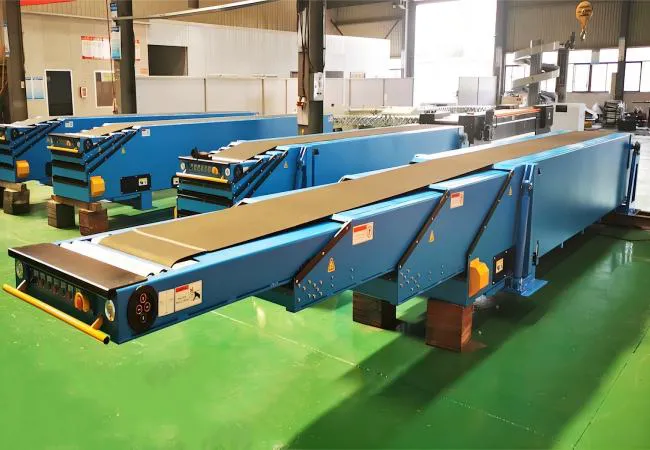

FTBC Series Telescopic Belt Conveyor
The FTBC series Fixed Telescopic Belt Conveyors need to be installed on a working platform to loading and unloading of container trucks, 20ft containers and 40ft containers.

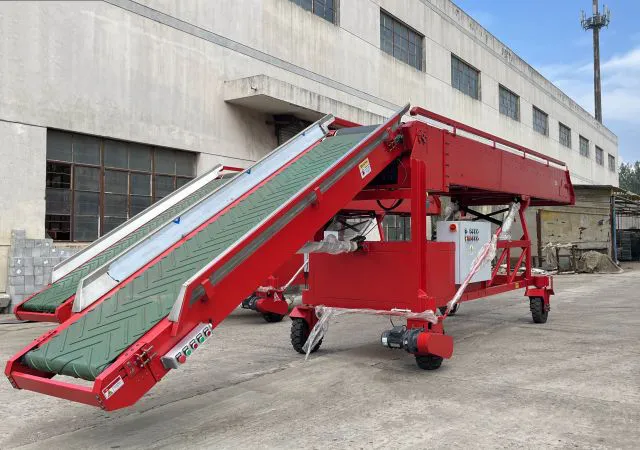

LC Series Telescopic Belt Conveyor
LC series telescopic belt conveyor, specially designed to load container trucks, can be moved with manual pushing casters or electric driving wheels.

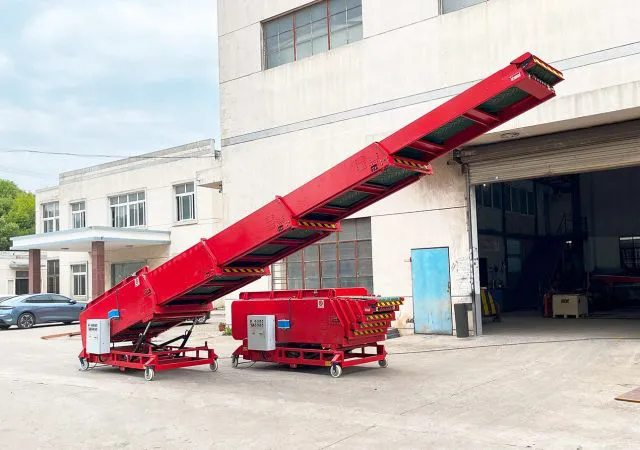

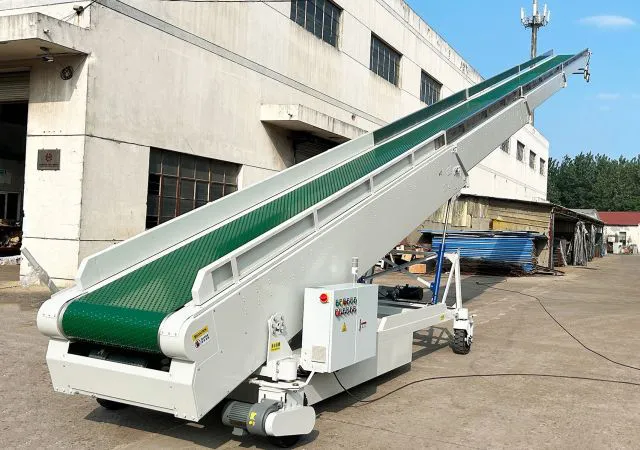

TC Series Telescopic Belt Conveyor
TC series telescopic belt conveyor, specially designed to stack bulk unit and load trucks, can be moved with manual pushing casters or electric driving wheels.

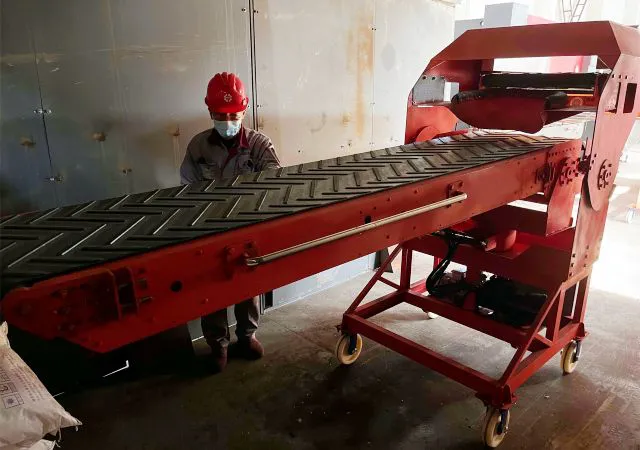

PA Series Bag Stacker in Container
The PA stacker is equipped at the discharge point of the LC telescopic belt conveyor and is a mobile stacking conveyor used to stack bags in truck containers.
More About Our Telescopic Belt Conveyor
Inbelts is a telescopic belt conveyor manufacturer in China. These extendable belt conveyor can extend and retract into a trailer or stack goods within a warehouse. Operators can control the extension via a manual or powered control panel, often with height adjustability and forward/reverse belt motion. They can be used to convey Cartons, Boxes (Paper or Wooden or Plastic), Bags, Buckets, etc.
Key Features of Telescopic Belt Conveyor
| Feature | Description |
| Extendable Design | Multiple sections slide within each other (2–4 stages common) |
| Forward/Reverse Belt Motion | Allows loading and unloading with a single unit |
| Height Adjustment (Optional) | Manual or hydraulic lifting for ergonomic working height |
| Operator Platform | Optional ride-on platform for faster operation |
| Compact Storage | Retracts when not in use to save warehouse space |
| Integrated Lighting | LED lights for visibility in container interiors |
| Safety Features | Emergency stop, anti-pinch rollers, and belt guards |
Technical Specifications (Typical)
| Parameter | Value Range |
| Conveyor Length (retracted) | 6 – 12 meters |
| Conveyor Length (extended) | 12 – 24 meters |
| Belt Width | 600 – 800 mm |
| Belt Speed | 10 – 40 m/min (adjustable) |
| Height Adjustment Range | 800 – 1200 mm or customized |
| Load Capacity | 50 – 100 kg/m depending on model |
| Sections (Stages) | 2-stage, 3-stage, or 4-stage designs |
| Motor Power | 1.5 kW – 5.5 kW |
| Control System | Manual push-button or PLC with HMI |
Applications of Telescopic Belt Conveyor
It is widely used in logistics, e-commerce, parcel handling, and warehousing to reduce manual labor, improve productivity, and ensure ergonomic handling.
| Sector | Use Cases |
| E-commerce | Fast loading/unloading of packages from delivery trucks |
| Courier / Express | Sorting center truck interface |
| Warehousing | Stack/de-stack cartons or bins within storage racks |
| Retail Distribution | Loading finished goods or unpacking returns |
| Manufacturing | Inbound material handling or outbound logistics |
Customization Options
- Number of telescopic stages (2–4)
- Adjustable height with manual/hydraulic/electric lift
- Movable on castor wheels or fixed installation
- Belt type: PVC, PU, anti-static, rough top
- Belt guides, side skirts, or cleats
- Integration with roller conveyors, sorters, scanners
Comparison with Other Loading Solutions
| System Type | Telescopic Belt Conveyor | Manual Conveyor | Scissor Lift + Conveyor |
| Speed | ✅ Fast | ⚠️ Slow | ⚠️ Moderate |
| Ergonomics | ✅ Excellent | ❌ Poor | ✅ Good |
| Flexibility | ✅ High | ⚠️ Medium | ⚠️ Medium |
| Investment | ⚠️ Medium–High | ✅ Low | ⚠️ Medium |
| Space Saving | ✅ Retracts | ✅ Manual fold | ❌ Occupies more space |
Advantages of Telescopic Belt Conveyor
- Reduces manpower and fatigue
- Improves throughput and turnaround time
- Increases safety and ergonomic comfort
- Compact and retractable—perfect for tight dock areas
- Easily integrates into automated warehouse systems
Would you like:
- A technical drawing or specification sheet?
- Help choosing a model for a specific truck/container size?
- A quotation from manufacturers or suppliers?
Let me know how you'd like to proceed.
Applications
Inbelts can provide personalized telescopic belt conveyor for truck loading unloading. You can get fixed and portable telescoping conveyor belts from us.
Truck Loading & Unloading
Used for loading & unloading of Trailers, vans, container trucks.
Container Loading Unloading
Used for loading and unloading of 20ft containers, 40ft containers, etc.
Warehouses Sotrage Processing
Used for stacking, goods loading in and goods loading out in warehouses.
Industries
The telescopic belt conveyors supplied by Inbelts are widely used in industries like logistics, ports, docks, stations, distribution centers, retail stores, airports and warehouses for loading and unloading of trucks and containers.
- Post
- Home Appliances
- Food
- Tobacco
- Light Industries
- E-Commerce
- Retail Stores
- Manufacturing & Packaging
