5m and 3 Section Telescopic Belt Conveyor, Telescopic length 7m
This is a 3 section telescopic belt conveyor. The telescopic belt conveyor base length is 5m, and the full extended length is 10 meters. The belt with is 800mm. There tow gearmotor are installed on the machine The rotating machine power is 2.2Kw and telescopic device power is 0.75Kw, The total height of this machine is about 800mm. The conveying speed can reach 45m/min.

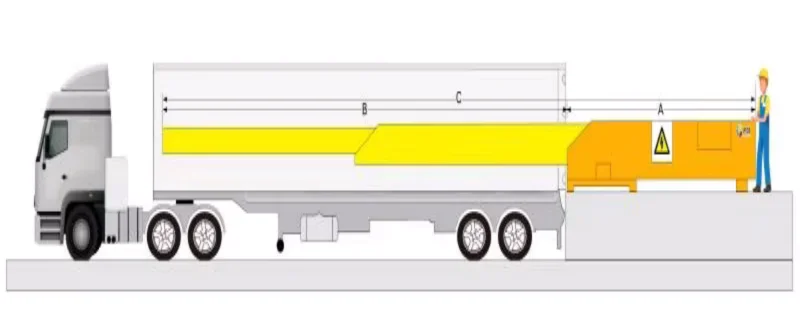

A=5000mm, B=7000mm, C=12000, Height=800mm, Width=1250mm
| Condition | New |
| Main Material | Stainless Steel |
| Material Characteristics | Heat Resistant |
| Structure | Conveyor System |
| Power | 2.95KW |
| Voltage | 220V/380V, 50HZ |
| Measure | L5000*W1250*H800mm |
| Defects liability period | 1 Year |
| Belt width | 600/800mm |
| Core component warranty period | 1 Year |
| Core component | Motor, Bearing, PLC |
| Weight | 2800KG |
| Function | Loading and unloading |
| Belt Types | PVK belt |
| Type | Other |
| Loading capacity | 60Kg/m |
