Long Lasting Chains for Sprocket Roller Conveyor

05/02/2025
admin

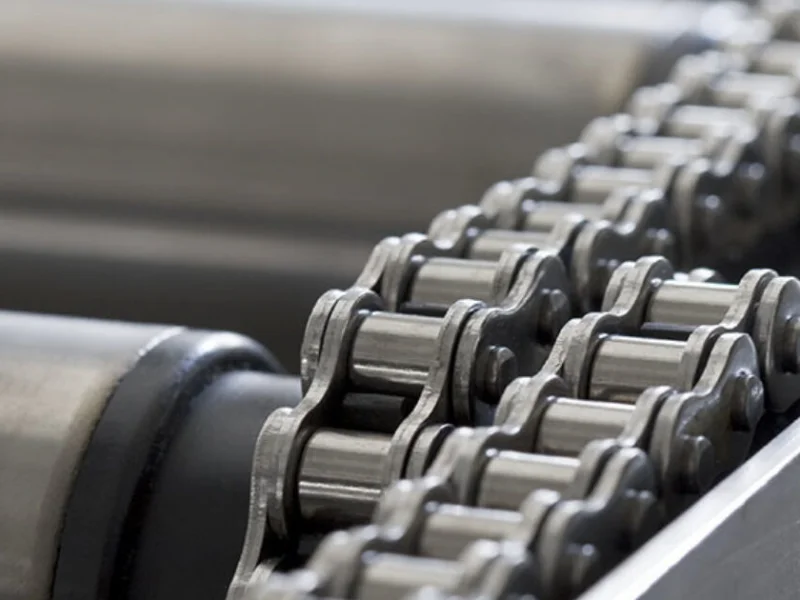

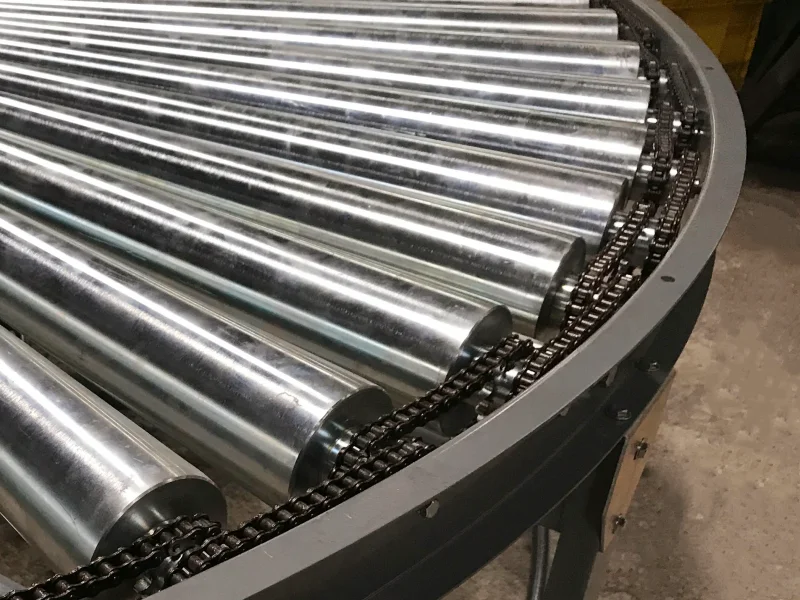

In a chain-driven roller conveyor, a roller chain transmits power from a motor to the rollers or between rollers to move loads. The chain engages sprockets attached to the rollers or a drive shaft, providing slip-free, robust power transfer. This makes chain-driven systems ideal for heavy-duty applications like pallet handling, industrial transport, or environments requiring durability.

Role of the Roller Conveyor Chain

Power Transmission: Transfers rotational force from the motor to rollers via sprockets.
Load Movement: Drives rollers to move items (e.g., boxes, pallets) along the conveyor.
Durability: Handles high loads (up to 5,000 lbs+) and harsh conditions (e.g., dust, oil).

Types of Roller Chains for Roller Conveyors

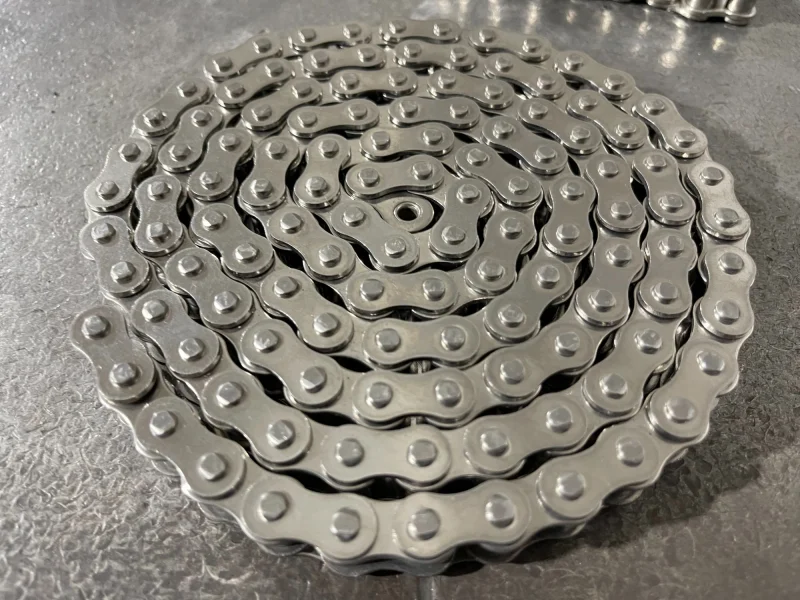

1. Standard Roller Chain (ANSI)

Description: Most common, made of carbon steel, used in general industrial conveyors.

Sizes

#40: 1/2" pitch, light/medium loads (e.g., boxes, totes, <500 lbs).
#50: 5/8" pitch, medium/heavy loads (e.g., small pallets, 500–2,000 lbs).
#60: 3/4" pitch, heavy-duty (e.g., large pallets, 2,000–5,000 lbs).

Larger sizes (#80, #100) for extreme loads.

Tensile Strength

#40: ~3,700 lbs.
#50: ~6,100 lbs.
#60: ~8,500 lbs.

2. Stainless Steel Roller Chain

Description: Corrosion-resistant, used in food-grade, washdown, or chemical environments.
Sizes: Same as standard (#40–#60).
Tensile Strength: Slightly lower than carbon steel (e.g., #50: ~5,000 lbs).
Use Case: Food processing, pharmaceuticals.

3. Nickel-Plated Roller Chain

Description: Carbon steel with nickel coating for moderate corrosion resistance.
Use Case: Outdoor or mildly corrosive settings; cheaper than stainless steel.

4. Heavy-Duty Roller Chain

Description: Thicker plates or reinforced design for extreme loads or high wear.
Example: #60H (heavy series) for rugged applications.
Use Case: Mining, heavy pallet handling.

5. Double-Pitch Roller Chain

Description: Longer pitch (e.g., C2040, C2050) for slower, less frequent use.
Use Case: Light-duty conveyors with wider roller spacing.

Key Specifications of Roller Chains

Pitch: Distance between roller centers (e.g., 1/2" for #40, 3/4" for #60).
Width: Inner width between plates (e.g., 5/16" for #40).
Roller Diameter: Affects load capacity and smoothness (e.g., 0.312" for #40).
Tensile Strength: Maximum load before breaking (e.g., 6,100 lbs for #50).
Material: Carbon steel (standard), stainless steel (food-grade), or nickel-plated (corrosion-resistant).
Lubrication: Pre-lubricated or requires periodic oil/grease application.

Roller Conveyor Chain Specifications

Parameter	#40 Chain	#50 Chain	#60 Chain
Pitch (P)	1/2" (12.7 mm)	5/8" (15.875 mm)	3/4" (19.05 mm)
Roller Diameter (d1)	0.312" (7.92 mm)	0.400" (10.16 mm)	0.469" (11.91 mm)
Inner Width (b1)	0.312" (7.95 mm)	0.375" (9.53 mm)	0.500" (12.70 mm)
Pin Diameter (d2)	0.156" (3.96 mm)	0.200" (5.08 mm)	0.234" (5.94 mm)
Plate Thickness (T)	0.060" (1.52 mm)	0.080" (2.03 mm)	0.094" (2.39 mm)
Plate Height (H)	0.472" (12.0 mm)	0.591" (15.0 mm)	0.709" (18.0 mm)
Weight per Foot	0.42 lbs/ft (0.63 kg/m)	0.69 lbs/ft (1.03 kg/m)	1.00 lbs/ft (1.49 kg/m)

Parameter	#40 Chain	#50 Chain	#60 Chain
Average Tensile Strength	3,700 lbs (16.5 kN)	6,100 lbs (27.1 kN)	8,500 lbs (37.8 kN)
Maximum Allowable Load	810 lbs (3.6 kN)	1,400 lbs (6.2 kN)	1,980 lbs (8.8 kN)
Operating Speed (Max)	500 ft/min (152 m/min)	450 ft/min (137 m/min)	400 ft/min (122 m/min)
Temperature Range	-10°C to 60°C (14°F to 140°F) standard; special chains up to 200°C (392°F)
Lubrication Requirement	Periodic (every 100–500 hours, SAE 20 oil or grease)

How to Choose a Roller Chain for a Roller Conveyor

1. Determine Load Requirements

Weight: Match chain to maximum load per roller or zone.
Light loads (<500 lbs): #40 chain.
Medium loads (500–2,000 lbs): #50 chain.
Heavy loads (2,000–5,000 lbs): #60 or larger.
Example: A 1,500-lb pallet needs #50 or #60 chain with >6,000 lbs tensile strength.

2. Assess Roller and Sprocket Compatibility

Rollers (e.g., 2.5" diameter) need sprockets matching chain pitch (e.g., #50 sprocket with 10–20 teeth).
Ensure sprocket bore fits roller axle (e.g., 1/2"–1" diameter).

3. Consider Conveyor Environment

Dry/Indoor: Carbon steel (#40–#60, $0.50–$3.50/ft).
Wet/Food-Grade: Stainless steel ($3–$10/ft).
Corrosive/Outdoor: Nickel-plated ($1–$5/ft).
High Wear: Heavy-duty or sealed chains.

4. Calculate Chain Length

Measure the loop length (e.g., 10' conveyor may need 20' chain for drive and return).
Add extra for tensioning (e.g., 2–5% slack).
Example: 15' conveyor ≈ 30'–32' chain.

5. Select Motor and Speed

Chain speed (30–60 ft/min) depends on motor (1/2–5 HP) and sprocket size.
Smaller sprockets increase speed but reduce torque; larger sprockets suit heavy loads.

6. Factor in Maintenance

Lubricate every 100–500 hours (e.g., SAE 20 oil or grease).
Choose sealed or low-maintenance chains for harsh environments.

Pricing for Conveyor Roller Chains

Based on data from sources like Made-in-China.com, eBay, and suppliers (e.g., Grainger, Tsubaki):

Standard Roller Chain (Carbon Steel)

#40: $0.50–$1.50 per foot.
#50: $1–$2.50 per foot.
#60: $1.50–$3.50 per foot.
Example: 30' of #50 chain ≈ $30–$75.

Stainless Steel Chain

#40: $2–$5 per foot.
#50: $3–$7 per foot.
#60: $5–$10 per foot.
Example: 30' of #50 stainless ≈ $90–$210.

Nickel-Plated Chain

#50: $1.50–$4 per foot.

Bulk Rolls

100' rolls reduce costs (e.g., #50 carbon steel: $100–$250).

Sprockets

$5–$50 each (e.g., #50, 15-tooth steel: $10–$20).

Replacement Costs

udget $100–$500 for chain/sprocket replacements per 10' conveyor section every 1–5 years.

Design Considerations for Chain-Driven Roller Conveyors

1. Chain Layout

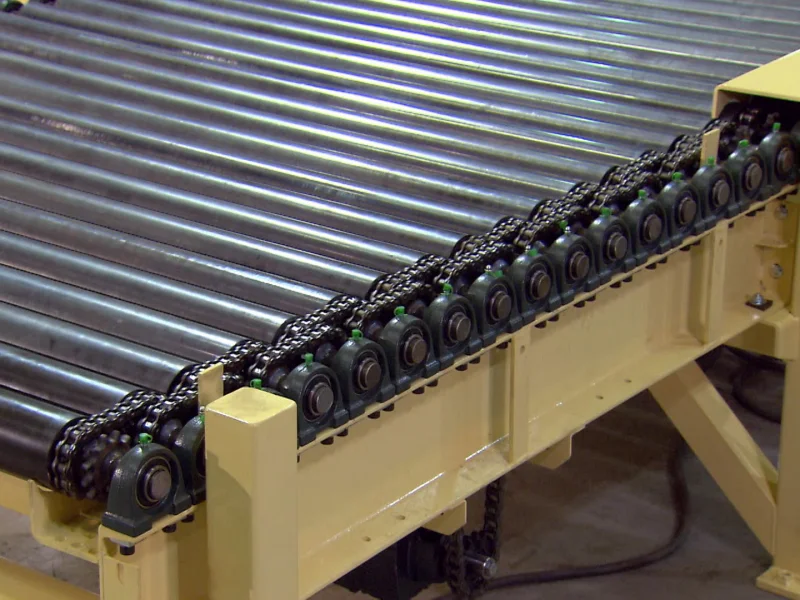

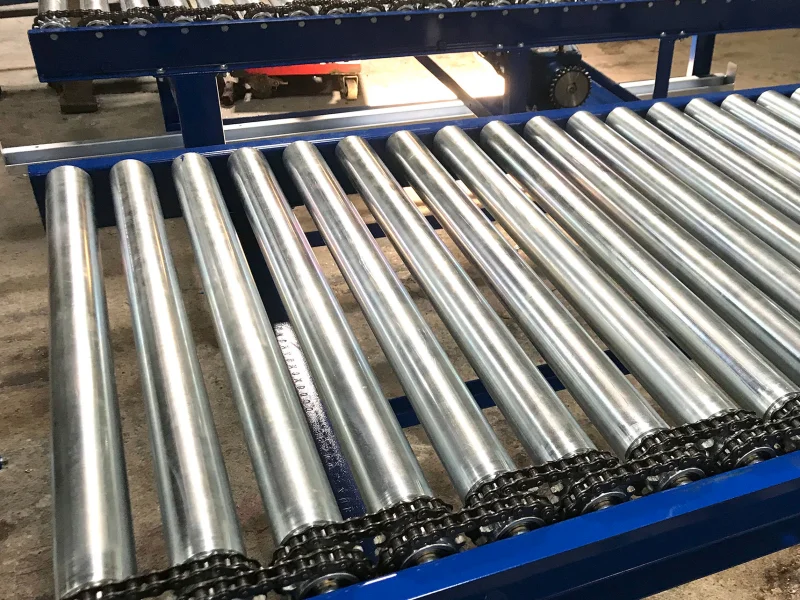

Single Chain: One chain drives multiple rollers via sprockets (common for light/medium loads).
Dual Chain: Two chains per roller for heavy loads (e.g., pallets).
Zoned: Separate chain loops for accumulation zones with clutches or sensors.

2. Tensioning System

Use adjustable idlers or spring-loaded tensioners to maintain chain tautness.
Avoid over-tensioning (causes wear) or under-tensioning (causes slippage).

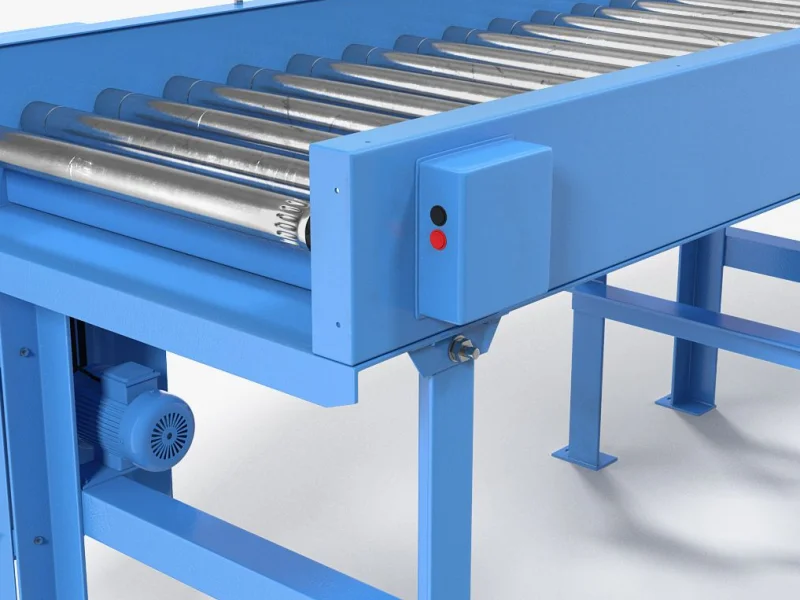

3. Chain Guard

Steel or plastic cover over chain to protect operators and prevent debris.
Design for easy removal during maintenance.

4. Roller and Frame

Rollers: 2.5"–3.5" diameter, steel, spaced 3"–6" for pallets/boxes.
Frame: Steel, reinforced for heavy loads (e.g., 1,000–5,000 lbs).

5. Safety Features

Emergency stops and overload sensors prevent chain breakage.
Side rails (4"–6" high) stabilize loads.

Maintenance Tips for Roller Chains

Lubrication: Apply oil/grease every 100–500 hours; use food-grade lubricants for sanitary settings.
Inspection: Check for wear, elongation, or broken links monthly; replace if chain stretches >3%.
Tension: Adjust to remove excessive slack (e.g., 1–2% of chain length).
Cleaning: Remove debris in washdown environments; avoid water on carbon steel chains.

Example Selection

Scenario: A 10' chain-driven roller conveyor for 1,000-lb pallets (48" x 40").
Chain: #50 carbon steel (5/8" pitch, ~6,100 lbs strength).
Length: ~20' chain (10' conveyor + return loop).
Sprockets: #50, 15-tooth, steel, one per roller.

Cost:

Chain: 20' × $2/ft = $40.
Sprockets: 10 rollers × $15 = $150.
Total: ~$190 (chain/sprockets only; conveyor ~$5,000–$8,000).

Roller chains for chain-driven roller conveyors are critical for heavy-duty transport, with #40–#60 chains costing $0.50–$10/ft depending on material. Selection hinges on load (light to heavy), environment (dry, wet, corrosive), and maintenance needs. For a precise chain specification or conveyor design, share your load weight, conveyor size, and application details. If you meant something specific (e.g., chain maintenance, a different conveyor type), let me know, and I'll adjust the response!
