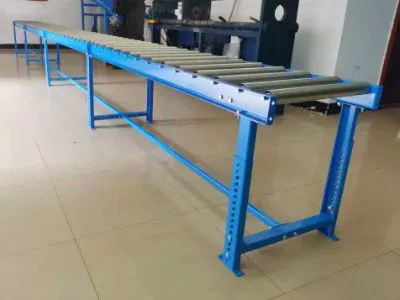

Unpowered Roller Conveyor

An unpowered roller conveyor, also commonly known as a gravity roller conveyor, is a material handling system that relies on gravity or manual force to move items along a series of free-spinning rollers, without the use of motors or external power sources. It’s a simple, economical option widely used in various industries. Below is a detailed explanation of its design, features, advantages, disadvantages, and applications.

Conveyor Rollers

• Constructed from materials like steel, aluminum, or plastic, chosen based on load weight and durability needs. Steel is used for heavy-duty applications, while plastic suits lighter or delicate items.
• Rollers are mounted on axles and rotate freely, allowing items to glide across them.

Conveyor Frame

• Typically made of steel or aluminum for strength and stability, the frame supports the rollers and can be straight, curved, or inclined.
• Often set at a slight downward angle (1-5 degrees) to utilize gravity, though flat setups can work with manual pushing.

Roller Spacing

• The distance between rollers is adjustable to match the size and shape of items, ensuring smooth movement without gaps or instability.

Side Guides or Rails

• Optional features to keep items aligned and prevent them from sliding off, especially useful for wider conveyors or unstable loads.

Incline or Flat Configuration

• Inclined: Uses gravity to move items downhill; the angle can often be adjusted.
• Flat: Requires manual pushing or external force, suitable for level surfaces or short distances.

Conveyor Portability

• Some models include wheels or lightweight, collapsible frames for easy relocation or temporary use.

Braking or Speed Control (Optional)

• For inclined setups, brakes or dampers can be added to slow items down, preventing runaway loads or collisions.

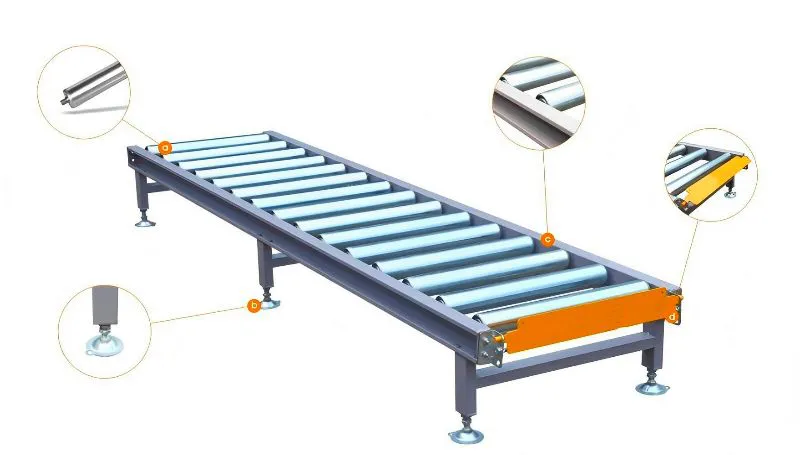

This picture is simple layout of unpowered roller conveyor layout (we can provide curved unpowered roller conveyor and straight unpowered roller conveyor).

• Low Cost: No motors or electrical components mean lower purchase and installation costs compared to powered conveyors.
• Minimal Maintenance: Simple design with few moving parts reduces wear and repair needs, ensuring long-term reliability.
• Energy-Free: Operates without electricity, making it eco-friendly and eliminating power-related expenses.
• Easy Setup: Lightweight and straightforward, it can be installed quickly without specialized tools or skills.
• Quiet Operation: Lacks motorized parts, resulting in minimal noise during use.
• Versatile: Adjustable incline, portable options, and modular designs allow it to adapt to various tasks or layouts.

• Warehousing and Distribution: Moves packages or boxes from unloading areas to sorting or storage zones, often as a cost-effective solution for short runs.
• Assembly and Production Lines: Transports lightweight components between workstations, especially in low-volume or manual assembly setups.
• Shipping and Receiving Docks: Facilitates loading/unloading of goods into trucks, commonly used as portable sections for quick material transfer.
• Retail Backrooms: Assists in moving inventory from storage to packing or display areas, particularly in smaller stores or temporary setups.
• Packaging Operations: Transfers finished goods (e.g., cartons) to sealing or shipping stations in simple, low-tech packaging lines.
• Temporary or Mobile Use: Portable unpowered roller conveyors are used at construction sites, events, or pop-up warehouses to move materials without permanent infrastructure.
