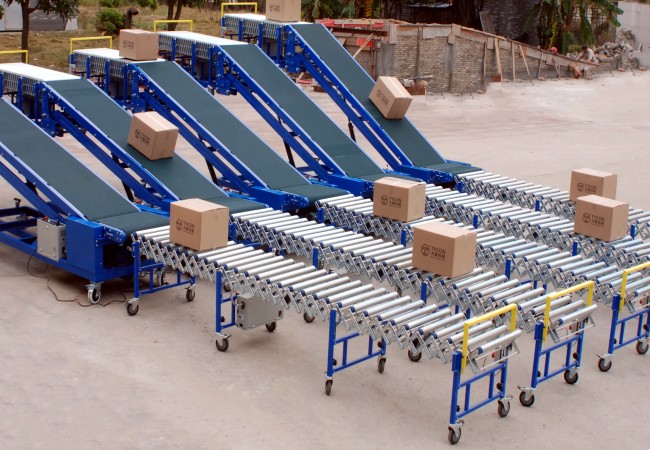

The TLCP is developed based on the TLC Truck Loading Conveyor. It is consist of an inclined portable belt conveyor and a flexible powered roller conveyor. Thanks to the flexible powered roller conveyor, the loading and unloading points of TLCP can be enlarged.
Home > Portable Conveyors > Truck and Container Loading Unloading Conveyor > Truck Container Loading Conveyor
TLCP Truck Loading Conveyor
About TLCP Truck Loading Unloading Conveyor

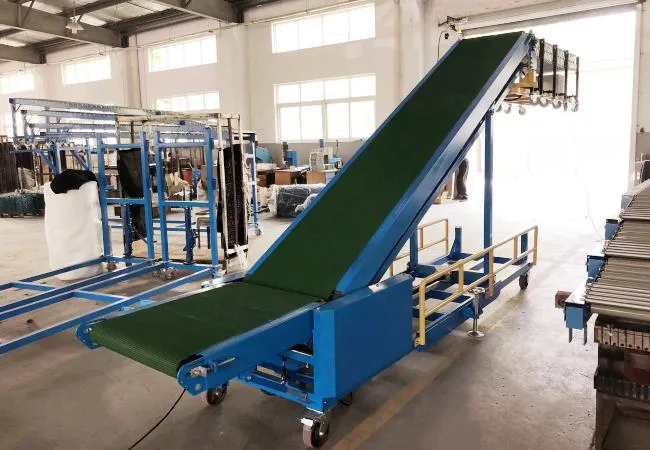

The CBLC Truck Loading Conveyor can be used in Loading and Unloading trailers, van, truck, container, etc. We have TLCP600 and TLCP800 models for your projects. Our portable belt conveyor is one of the most popular lorry loaders. It is extremely maneuverable and can be easily moved into position on its swivel castors with brakes.
- 5mm thick rough top conveyor belt prevents goods from sliding during conveying.
- Expands the working area and reduces labor in the factory.
- Control panel with cover door protects buttons.
- Side safety rails prevent people from falling into the machine.
Drawings & Layout

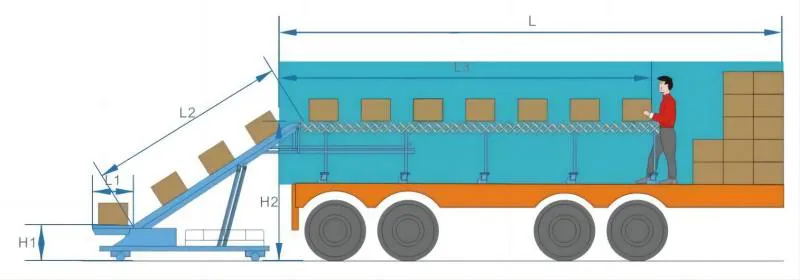

This picture is simple layout of this TLCP truck loading unloading conveyor.
Data Sheet
| TLCP Truck Loading Conveyor - TLCP600/TLCP800 | |
| Part 1: Inclined Belt Conveyor | |
| Conveyor Belt Width | 600 mm or 800 mm |
| Conveyor Belt Type | Rough top PVC Conveyor Belt, Thickness 5 mm |
| Adjustable Height | 700 - 2500 mm |
| Adjustable Speed | 10-20 m/min |
| Loading Bearing Capacity | 50 Kg/m |
| Moving Casters | Heavy duty lockable swivel PU casters, Φ125mm |
| Part 2: Flexible Powered Roller Conveyor | |
| Conveyor Roller | Φ50 * T 1.5 mm galvanized steel rollers |
| Roller Drive Motor | 60 W or 90 W |
| Adjustable Speed | 10-18 m/min, Forward and Reverse |
| Loading Bearing Capacity | 50 Kg/m |
| Effective Conveyor Width | 600 mm |
| Extendable Length | 1800 - 4200 mm |
| Adjustable Legs | 30*30*2 mm galvanized steel tubes or paint in black |
| Moving Castors | 125 mm (5'') high quality swivel PU casters with brakes |
| Control Panel | Forward/Stop/Reverse, Emergency Stop, When rollers fully opened, carton length should be more than 280 mm |
Related Products
Inbelts is professional portable conveyor belts manufacturer in China. You can get all this types of truck loading unloading conveyors from our company.
TLCP Truck Loading Conveyor
The TLCP is developed based on the TLC Truck Loading and Unloading Conveyor. It can expand the loading and unloading points. We have TLCP600 and TLCP800 for your projects.
CBLC Truck Loading Conveyor
The CBLC Truck Loading and unloading Conveyor is consist of inclined belt conveyor and a flexible powered roller conveyor.
Industries
The portable truck loading unloading conveyors supplied by Inbelts are widely used in loading & unloading and transferring packaged goods in logistics, ports, docks, stations, distribution centers, retail stores, airports and warehouses.
