CBLC Truck Loading Conveyor
About CBLC Truck Loading Unloading Conveyor
The CBLC Truck Loading Conveyor can be used in automatically loading or unloading in and out of trailers, vans, trucks, and containers in warehouses, harbor, airport, dock, etc. The conveyor can be reversed, so it is also can be used in unloading goods from trucks.
- Has flexible powered roller conveyor installed at the head.
- The height of tail section is adjustable via hand-wheel.
- Use hydraulic to change the loading height.
- Use independent control box to control flexible powered roller conveyors.
- The head part of truck loading conveyor can be moved when it is not in using.
- With rubber coated roller conveyors, the truck loading conveyor can be used to load bags.
Drawings & Layout

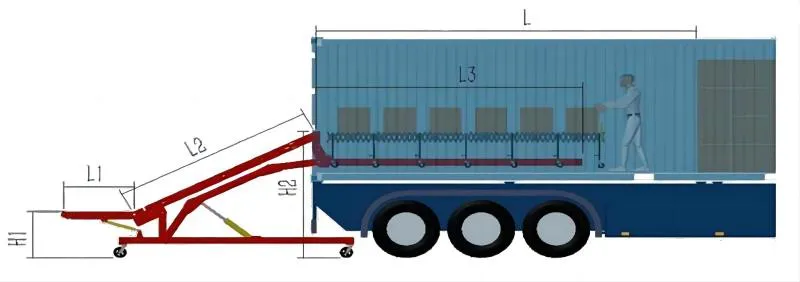

This picture is simple layout of this CBLC truck loading unloading conveyor.
Data Sheet
| Truck Loading and Unloading Conveyor - CBLC600 | |
| Inclined Belt Conveyor | |
| Conveyor Belt Width | 600mm |
| Conveyor Belt Type | 3mm PVC Belt (anti-skiding) |
| Load-in Height | 1600 or 1800mm |
| Load-out Height | 550-1050 or 850-1350 |
| Load Capacity | 50kg/m |
| Heavy Duty Caster | Φ200mm lockable swivel PU casters |
| Flexible Powered Roller Conveyor | |
| Roller Conveyor Lenght (m) | 2.8-7.2 |
| Rollers | Φ50*T1.5 galvanized steel rollers, face lenght 600mm |
| Roller Dirven Belt | Poly V-belt |
| Motor Power | 90W, 7 rollers / section |
| Adjustable Height | 600-800mm |
| Load Capacity | 50kg/m |
| Truck Loading and Unloading Conveyor - CBLC800 | |
| Inclined Belt Conveyor | |
| Conveyor Belt Width | 800 |
| Conveyor Belt Type | 3mm PVC Belt (anti-skiding) |
| Load-in Height | 1600 or 1800mm |
| Load-out Height | 550-1050 or 850-1350 |
| Adjustable Speed | 10-20m/min |
| Load Capacity | 50kg/m |
| Heavy Duty Caster | Φ200mm lockable swivel PU casters |
| Flexible Powered Roller Conveyor | |
| Roller Conveyor Lenght (m) | 2.8-7.2 |
| Rollers | Φ50*T1.5 galvanized steel rollers, face lenght 800mm |
| Roller Dirven Belt | Poly V-belt |
| Motor Power | 120W, 7 rollers / section |
| Adjustable Height | 600-800mm |
| Load Capacity | 50kg/m |
