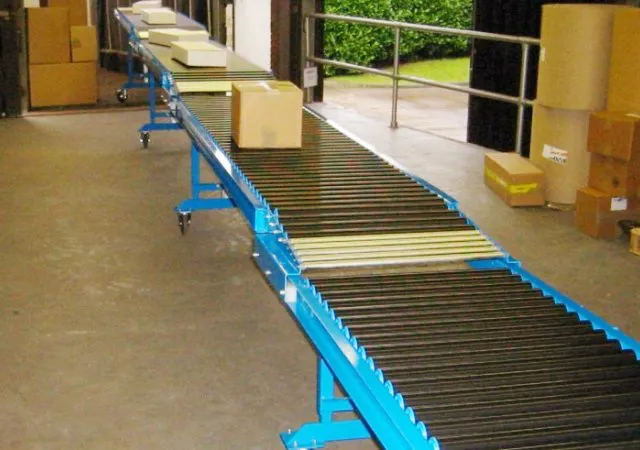

TBRF Telescopic Gravity Roller Conveyor

The TBRF telescopic gravity roller conveyors are consisting of several sections of gravity roller conveyors. It may be the most economical solution for unloading goods in warehouses.
TBRF Telescopic Gravity Roller Conveyor
TBRF Telescopic Gravity Roller Conveyor

About TBRF Telescopic Gravity Roller Conveyor

  • Vast range of width and models
  • Robust solid welded construction
  • 50mm diameter rollers fitted in decks
  • 25mm diameter steel rollers used in transfer section to ensure smooth transfer
  • Screw jack and adjustable height on each deck
  • Rated 50Kg per meter
  • Handles and package stop as standard
  • quality powder coat finish RAL 5015 (Blue as standard other colors available on request).
  • 125mm diameter swivel braked castors on each deck.
  • Standard options available: Drop-down end stops, connecting hooks, stainless steel bearings for wet environments

Drawings & Layout

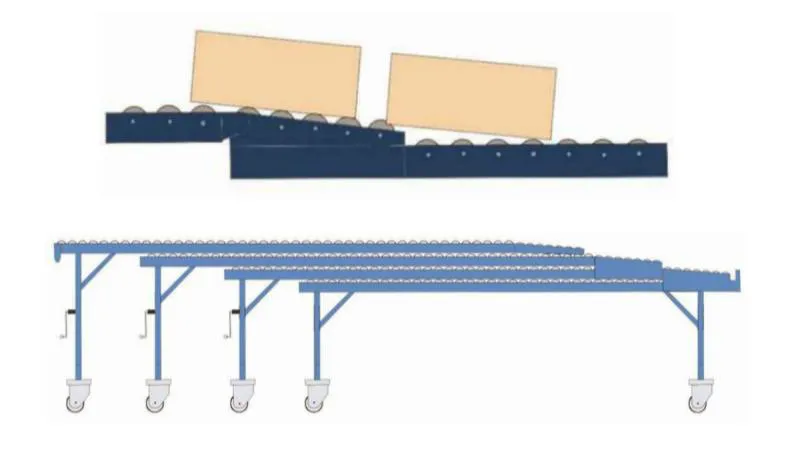

telescopic gravity roller conveyor layout

This picture is simple layout of TBRF telescopic gravity roller conveyor. It will be setted up on the floor.

Data Sheet

TBRF
Conveyor Roller main roller Φ50mm, transfer roller: Φ25mm, galvanized steel rollers
Full Open Length 17046mm
Close Length 5331mm
Effective Width 600mm
Loading Height 1102mm-1302mm
Discharge Height 750mm-850mm
Castors Diameter 125mm
Bearing Capacity 50Kg/m
Height Adjusting Instrument Screw jack
