TBR Telescopic Gravity Roller Conveyor

The TBR10 and TBR12 telescopic gravity roller conveyors are an unloading conveyor for trailers, box trucks, containers. Each model is consisting of several section roller conveyor.

About Telescopic Gravity Roller Conveyor

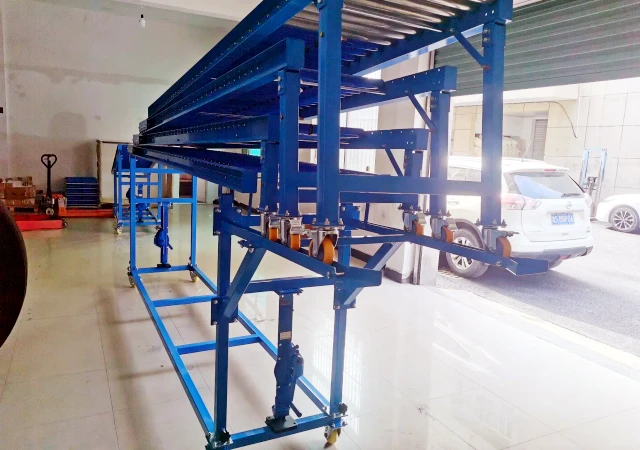

Mounted on a large robust box section chassis with an adjustable platform which suits most tailboard heights.
Fully welded steel construction giving stability and strength.
Low inertia 50mm diameter PVC rollers set at 65mm centers allows transportation small and large parcels.
Each deck of track is independently height adjustable by means of A screw jack allowing correct gravity fall.
Intended for off-loading only without the need of a loading dock, the telescopic can be used in conjunction with other conveyor from our extensive range to reach all areas of the warehouse.

Drawings & Layout

telescopic gravity roller conveyor layout

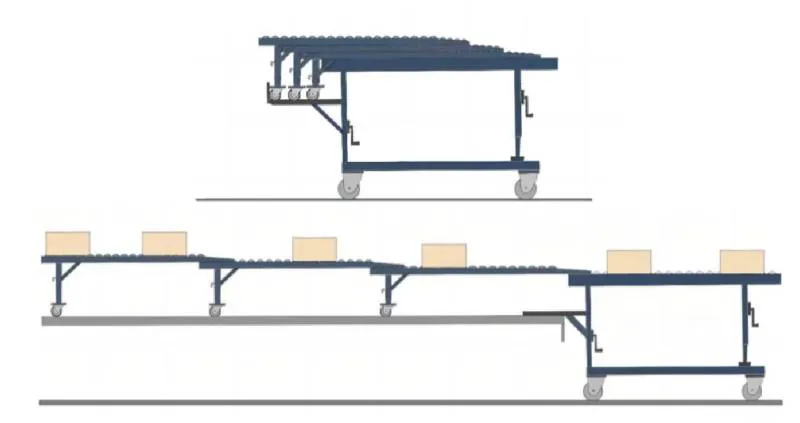

This picture is simple layout of TBR telescopic gravity roller conveyor.

Data Sheet

TBR10
Conveyor Roller	Φ50mm Transfer Roller, Φ25mm galvanized steel rollers
Full Open Length	13500mm
Close Length	4700mm
Effective Width	600mm
Declined Section Length	3000mm
Loading Height in Vehicle	250-930mm
Discharge Height Outside Vehicle	1450-1750mm
Overall Length in Vehicle	10m

TBR12
Conveyor Roller	Φ50mm Transfer Roller, Φ25mm galvanized steel rollers
Full Open Length	16900mm
Close Length	4800mm
Effective Width	600mm
Declined Section Length	4000mm
Loading Height in Vehicle	818-1198mm
Discharge Height outside Vehicle	970-1350mm
Overall Length in Vehicle	12m
