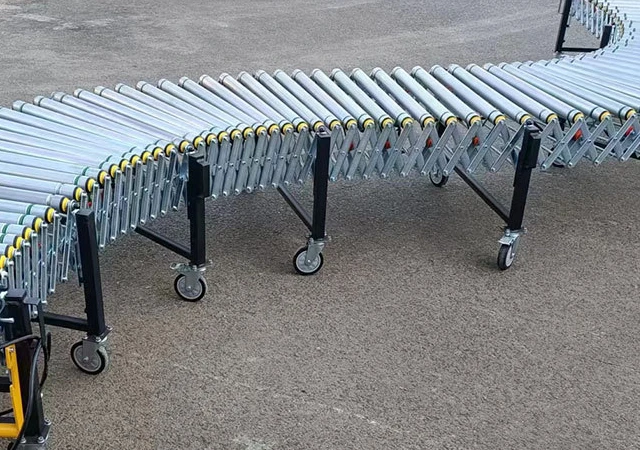

FPRO Flexible Powered Roller Conveyor

The FPRO flexible powered roller conveyor is type of medium heavy portable flexible roller conveyor using o belt to drive the grooved rollers. The maximum loading bearing capacity can be up to 50Kg/m. Each section has 9 rollers and a mini drive motor. The FPRO flexible powered roller conveyor is widely used in warehouse, storehouse, workshop, factory, harbor, dock, etc.

About FPRO Flexible Roller Conveyor

The FPRO flexible powered roller conveyor is widely used in warehouse, storehouse, workshop, factory, harbor, dock, etc. It has many features.

The conveying speed and direction is controllable.
The height of supporting leg is adjustable.
Each section has a drive motor to provide driving power.
Easy and quick to set up at any places.

In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line.

Drawings & Layout

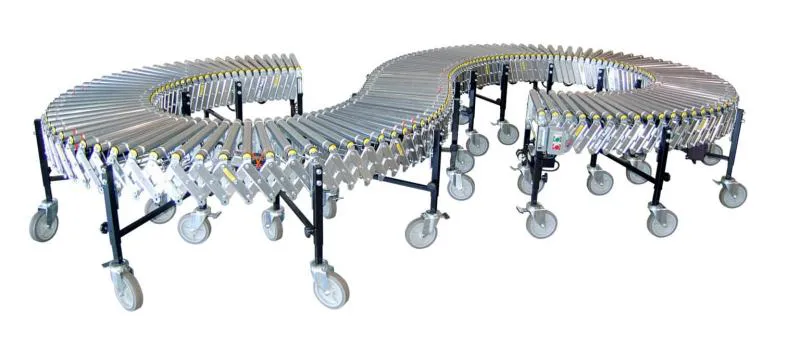

This picture is simple layout of flexible powered roller conveyor layout (O PU belt for roller driving).

Data Sheet

Conveyor Drive Belt	5mm O Ring PU Drive Belt
Conveyor Roller	Dia. 50*1.5mm galvanized steel roller, Max. gap 130mm center to center
Drive Motor	90W mini motor
Roller Width	600, 700, 800mm
Conveying Speed	12-20m/min
Adjustable Height	600-800mm
Max.Load(kg/㎡)	50Kg/m
Join Frame	3.5mm thickness galvanized curved join plates with better loading capacity
Supporting Leg	32x32 powder coated tube with 25x25 galvanized tube inside
Max. Bearing Capacity	50Kg/m
Caster	Dia 125mm high quality swivel lockable polyurethane casters
Control Box	Forward, Stop, Reverse
Power Source	*

Model	Open Length(mm)	Close Length(mm)
FPR-O4	4800	1840
FPR-O6	6000	2300
FPR-O7	7200	2760
FPR-O8	8400	3220
FPR-O9	9600	3680
FPR-O10	10800	4140
FPR-O12	12000	4600
FPR-O13	13200	5060
FPR-O14	14400	5520
FPR-O15	15600	5980
FPR-O16	16800	6440
FPR-O18	18000	6900
FPR-O19	19200	7360
FPR-O20	20400	7820
