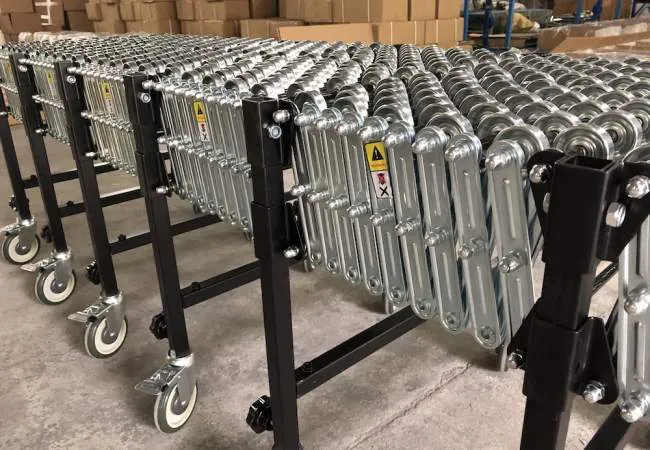

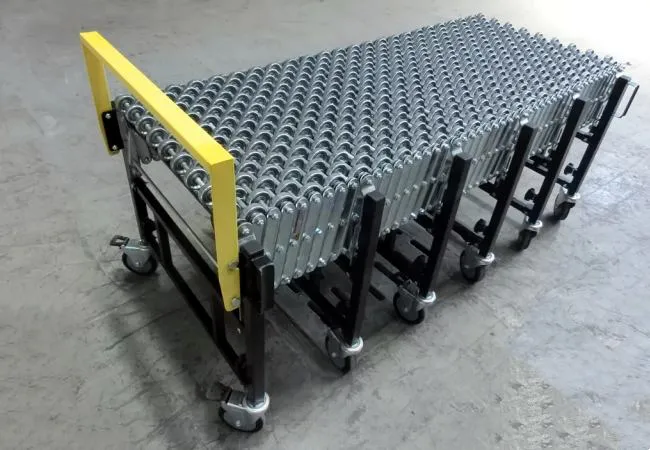

FGWS Flexible Skate Wheel Conveyor

The FGWS flexible skate wheel conveyor is a type of portable flexible gravity conveyors which use steel wheel rollers as the supporting rollers. It is also a small and medium duty conveyor, its  maximum loading bearing capacity is 40Kg/m.

FGWS Flexible Skate Wheel Conveyor
FGWS Flexible Skate Wheel Conveyor

About FGWS Flexible Skate Wheel Conveyor

  • It can curve even in zigzag narrow aisles
  • Use rugged heavy duty self-tracking skate wheels.
  • Use enclosed steel ball bearings to provide a smooth materials flow.
  • Use steel skate wheels as the supporting roller.

Drawings & Layout

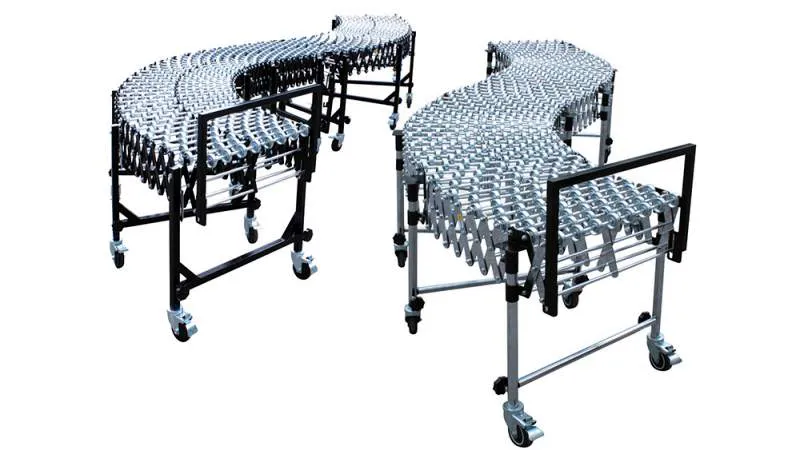

flexible skate wheel conveyor layout

This picture is simple layout of flexible skate wheel conveyor layout (steel wheels).

Data Sheet

Effective Width 450mm, 600mm
Adjustable Height 700-1000mm, 800-1200mm
Max.Load 40kg/m
Bearings Enclosed Steel Ball Bearings
Supporting Leg powder coated frame, round steel pipe or square steel pipe
Wheels self-tracking metal wheel rollers
Axle centers 1-1/4" to 4"
Minimum package size 7"
Max. Loading Bearing Capacity 40Kg/m
Caster  Dia 100mm(4") heavy duty lockable swivel polyurethane casters

Model Close Length Open Length
FGW-S2.5 860mm 2500mm
FGW-S3.6 1200mm 3600mm
FGW-S4.7 1540mm 4700mm
FGW-S5.8 1880mm 5800mm
FGW-S6.9 2220mm 6900mm
