FGRM Flexible Gravity Roller Conveyors

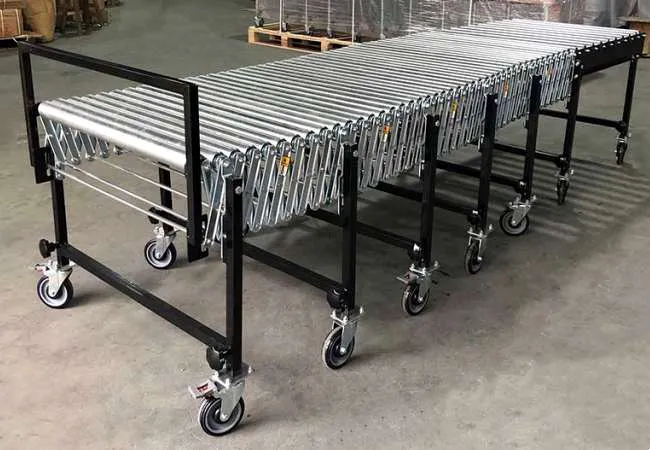

This FGRM flexible gravity roller conveyor is a type of medium duty gravity roller conveyor which is designed to convey flat items, such as different sized boxes, cases, cartons, etc. It is a medium duty flexible roller conveyor.

About FGRM Flexible Gravity Roller Conveyor

The maximum loading capacity of FGRM flexible gravity roller conveyor is 50Kg/m. It is designed to convey flat items, such as different sized boxes, cases, cartons, etc. It has many features.

The supporting legs of FGRM roller conveyors can be round steel pipes and square steel pipes.
It can be expanded if you require a longer system or bent into curves or even compacted for better storage when not in use.
Whats more, this roller conveyor is very easy to quick manoeuvre in or out of trucks for faster, safer, easier loading and unloading materials.

Drawings & Layout

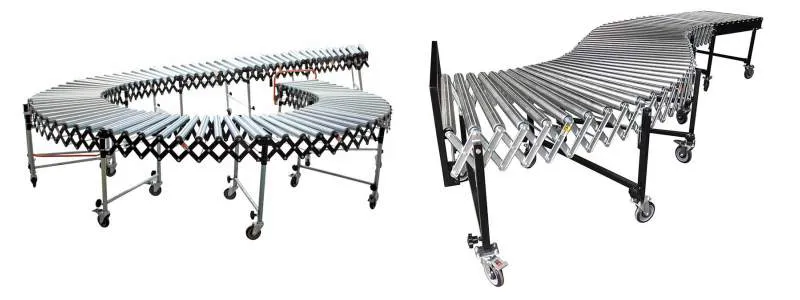

This picture is simple layout of medium duty flexible gravity roller conveyor layout.

Data Sheet

FGRM-Using Round Pipe or Square Pipe
Conveyor Roller	Max. gap 130mm center to center, Φ50*1.5mm galvanized steel roller
Effective Width	600mm
Adjustable Height	700-1000mm
Max. Load Capacity	50Kg/m
Joint Frame (Round Pipe)	2mm thickness galvanized steel plates
Joint Frame (Round Pipe)	3.5mm thickness galvanized steel plates
Supporting Legs	the height is adjustable
Caster	Φ100mm swivel lockable polyurethane casters

FGRM-Using Round Pipe
Model	Open Length	Close Length	Effective Width
FGR-M2.5	2500mm	1120mm	600mm
FGR-M3.6	3600mm	1580mm	600mm
FGR-M4.7	4700mm	2040mm	600mm
FGR-M5.8	5800mm	2500mm	600mm
FGR-M6.9	6900mm	2960mm	600mm

FGRM-Using Square Pipe
Model	Open Length	Close Length	Effective Width
FGR-M4.2	4200mm	1700mm	600mm
FGR-M5.2	5200mm	2100mm	600mm
FGR-M6.2	6200mm	2500mm	600mm
FGR-M7.2	7200mm	2900mm	600mm
FGR-M8.2	8200mm	3300mm	600mm
FGR-M9.2	9200mm	3700mm	600mm
FGR-M10.2	10200mm	4100mm	600mm
