Industrial Light Duty Belt Conveyor

About Light Duty Belt Conveyor

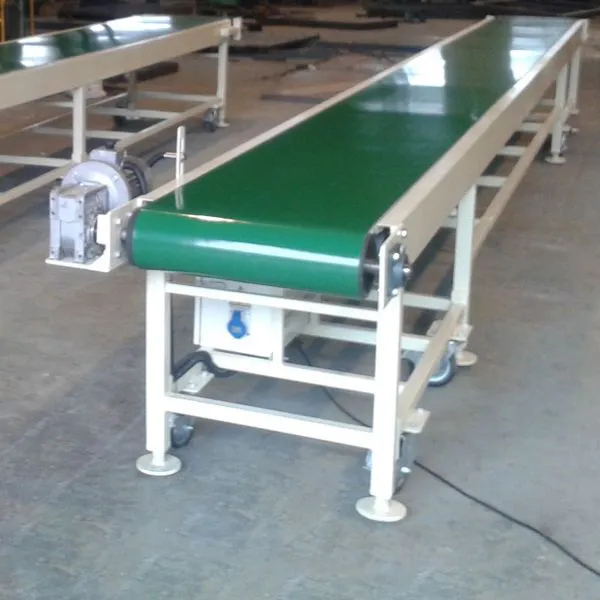

An industrial light-duty belt conveyor is a belt conveyor designed for transporting lightweight materials or items in industrial settings. It features a continuous belt supported by rollers or a slider bed, tailored for loads typically ranging from a few ounces to about 100 to 200 lbs. These conveyors are built for efficiency, durability, and versatility in less demanding industrial applications compared to heavy-duty systems. Our belt conveyor also can handle light food items (e.g., snacks, packaged goods) in sanitary designs with FDA-approved belts.

Key Components of an Industrial Belt Conveyor

Conveyor Belt

• Made from materials like PVC, rubber, polyurethane, or fabric, chosen for flexibility, durability, and suitability for light loads.

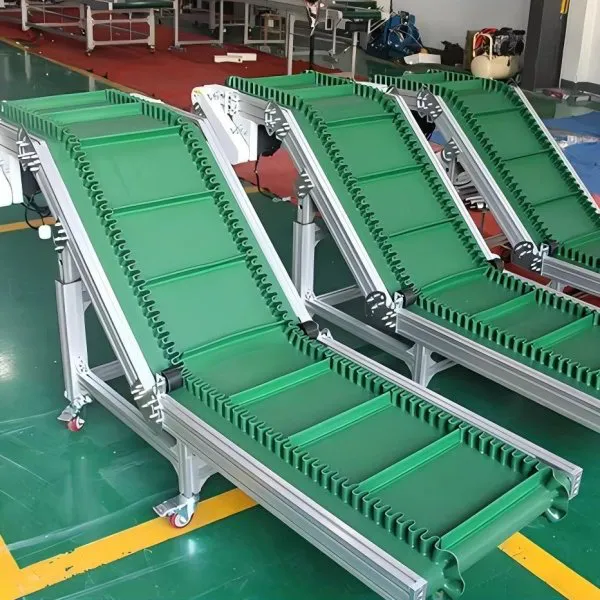

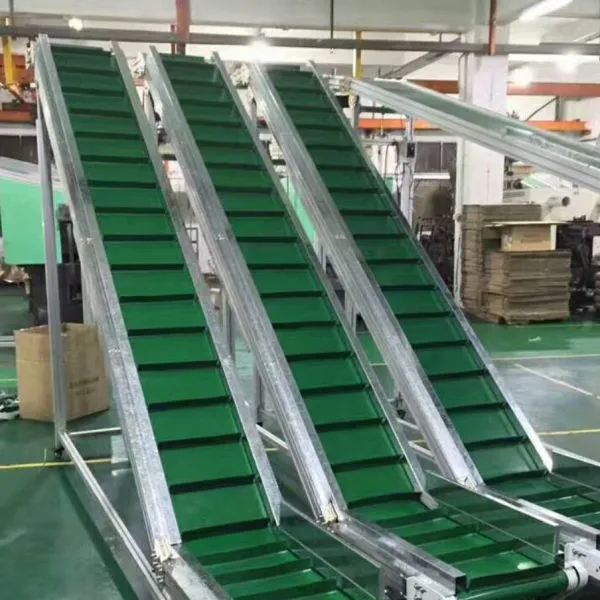

• Surface can be smooth, textured, or lightly cleated to grip items without adding significant weight.

Conveyor Frame

• Constructed from lightweight steel, aluminum, or sometimes reinforced plastic, balancing strength with portability.
• Typically narrow and compact to fit industrial environments with limited space.

Support System

• Rollers: Small idler rollers support the belt, reducing friction and aiding smooth movement.
• Slider Bed: A flat surface beneath the belt, common in light-duty designs for even lighter loads or quieter operation.

Drive Mechanism

• Powered: An electric motor (e.g., 1/4 to 1 HP) drives the belt via a head or tail pulley, providing consistent movement.
• Variable speed controls may be included for flexibility.

Belt Width

• Ranges from 6" to 24" wide, tailored to small or medium-sized industrial items like packages, parts, or containers.

Side Guides

• Low-profile rails or guards along the edges keep items aligned and prevent them from falling off.

Tensioning System

• Adjustable pulleys or take-up mechanisms maintain belt tension, ensuring smooth operation and preventing slippage.

Safety Features

• Emergency stops,
• guards,
• overload protection
• and more.

How to Choose a Light-Duty Belt Conveyor

1. Define Your Application Requirements

• Purpose: Determine what the conveyor will do (e.g., transport, sort, accumulate, elevate).
• Load Type: Identify the items to be transported (e.g., boxes, bags, loose materials, small components), including shape and size.
• Weight Capacity: Estimate the maximum weight per item or per foot (typically 100–200 lbs for light-duty systems).

2. Assess Material Characteristics

• Item Surface: Check if items are smooth, rough, wet, oily, or fragile, as this affects belt selection.
• Abrasion or Chemical Exposure: Determine if materials are abrasive (e.g., small metal parts) or involve chemicals (e.g., oils, solvents).
• Temperature: Consider the operating environment (e.g., cold storage, high heat). Standard belts handle moderate temperatures; special belts are required for extremes.

3. Determine Conveyor Specifications

• Belt Width: Match the width to your largest item (e.g., 6"–24" for light-duty systems).
• Length: Measure the distance items need to travel, including any curves or transitions.
• Speed: Decide how fast items need to move (e.g., 20–100 feet per minute).

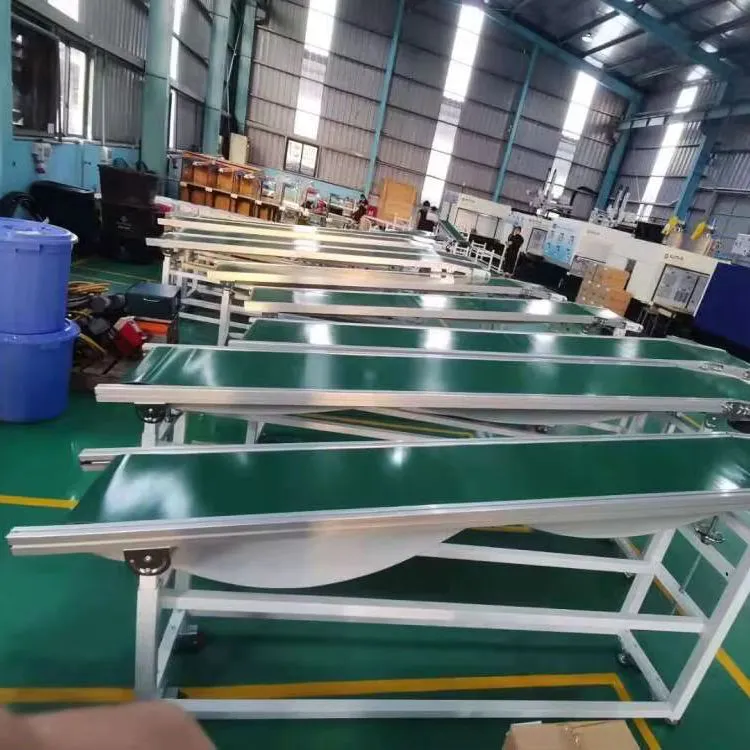

• Incline (if applicable): Check if elevation is needed and the angle (e.g., 10°–30°).

4. Evaluate Drive and Power Needs

• Motor Power: Choose a motor based on load weight and speed (e.g., 1/4 to 1 HP for light-duty).
• Control Options: Decide if you need basic on/off functionality or advanced controls (e.g., variable speed, sensors).
• Power Supply: Confirm compatibility with your facility's voltage (e.g., 110V, 220V).

5. Consider Facility Constraints

• Space: Measure available floor space and ceiling height.

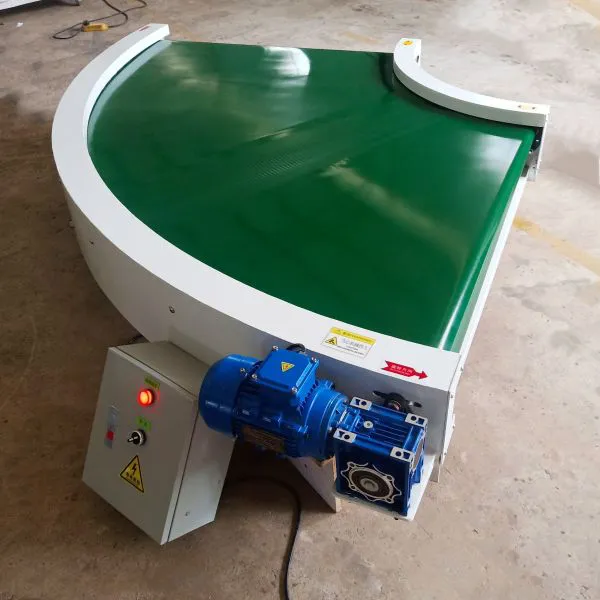

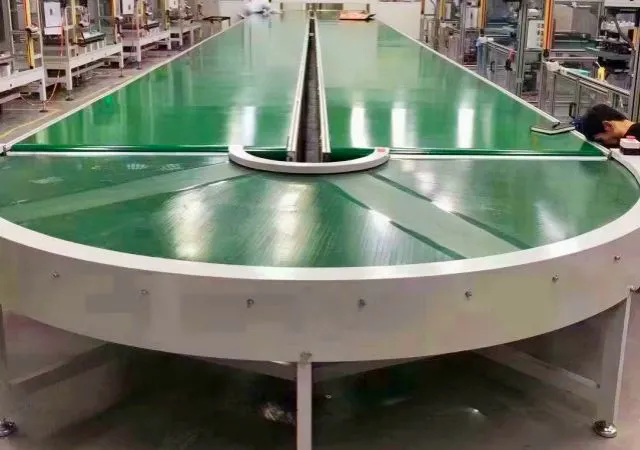

• Layout: Assess if curves, inclines, or straight runs are required.
• Portability: Decide if the conveyor needs to be movable (e.g., with wheels) or fixed.

6. Select Belt and Frame Materials

• Belt Material: PVC/PU Belt For food and clean environments and Rubber Belt For general industrial applications.
• Frame Material: Aluminum, Steel, Stainless Steel. Match to your environment (e.g., stainless steel for washdown areas).

7. Factor in Safety and Ergonomics

• Safety Features: Ensure emergency stops, guards, and overload protection are included.
• Operator Access: Check loading/unloading height for worker comfort (typically 30–36 inches).

8. Budget and Long-Term Costs

• Initial Cost: Compare quotes from suppliers, balancing features with affordability.
• Operating Cost: Factor in electricity use and spare parts (e.g., belts, rollers).
• Maintenance: Choose a design with accessible components to minimize downtime and repair costs.

9. Verify Industry Standards (if applicable)

• Regulations: Ensure compliance with relevant standards (e.g., FDA for food, OSHA for safety).
• Certifications: Check if the conveyor meets certifications for your sector (e.g., CE, UL).

10. Consult Suppliers and Test Options

• Supplier Input: Share your requirements with manufacturers or distributors for tailored recommendations.
• Testing: If possible, test a demo unit or request a trial to confirm performance with your materials.

Would you like recommendations on a specific light-duty belt conveyor for your industry?
