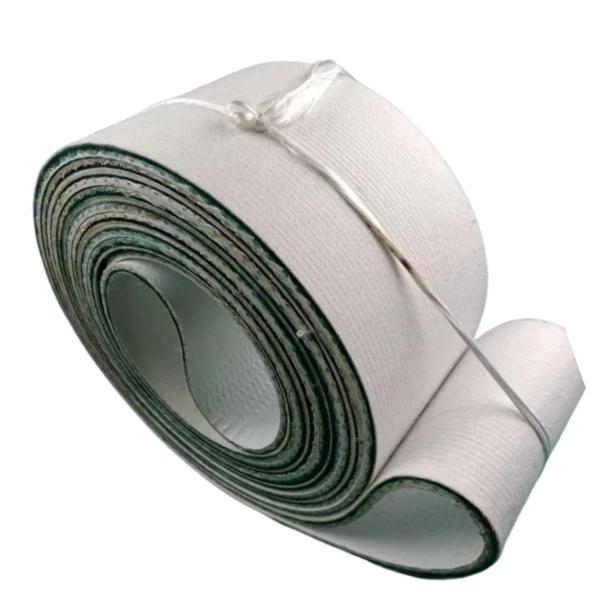

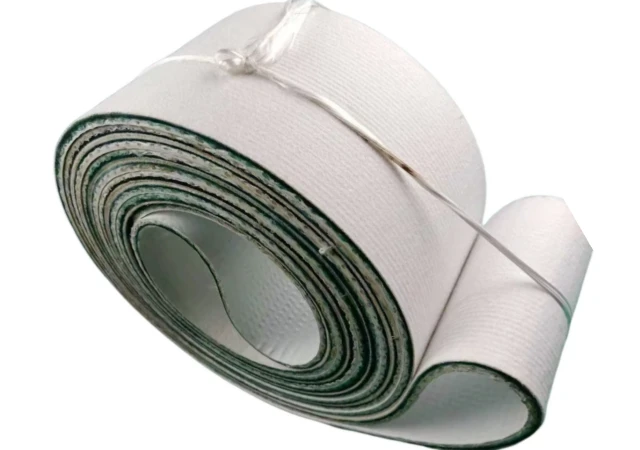

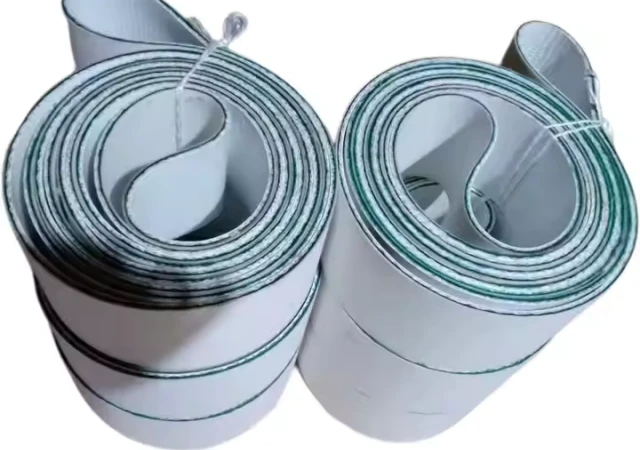

Felt Surface Seamless Coil Wrapper Belt

A felt seamless TPU coil wrapper belt is a laminated, non-marking belt designed to protect delicate metal surfaces during high-speed wrapping or conveying. It is designed specifically for gentle, scratch-free handling and wrapping of metal coils, such as aluminum and stainless steel.

A Felt Seamless TPU Coil Wrapper Belt is a premium-grade conveyor belt designed specifically for gentle, scratch-free handling and wrapping of metal coils, such as aluminum and stainless steel. These belts combine a soft felt surface with a durable TPU (thermoplastic polyurethane) backing, and are seamless—made in an endless loop without any splices or joints—to ensure even tension and surface quality.

Key Features

Feature	Description
Seamless Construction	No splices—uniform strength, smoother operation
Soft Felt Surface	Scratch-free contact for sensitive metal surfaces (aluminum, stainless steel)
TPU Backing	High wear resistance, tear resistance, good elasticity
Non-Marking	Designed to leave no residue or scratches on coils
Anti-Slip Surface	Felt or grooved designs can offer controlled friction
Low Noise	Felt and TPU combination absorbs vibration and reduces operational noise

Material Construction

Layer	Material Type
Top Surface	Polyester or wool-blend felt (non-marking)
Bottom Layer	TPU (thermoplastic polyurethane)
Optional Core	Nylon or Aramid mesh for dimensional stability

Typical Technical Parameters

Parameter	Value Range
Thickness	4 mm – 10 mm
Width	200 mm – 2,000 mm (customizable)
Length	Seamless loop; customized to machine
Top Coating	TPU
Top Cover Thickness	0.5-2.0 mm
Hardness (Felt)	Shore A 30–50 (soft surface)
Hardness (TPU)	Shore A 85–95
Temperature Resistance	-20°C to +90°C
Surface Color	White / Grey / Green (non-staining)
Elongation at Break,1.5%	25 N/mm
Elongation at Break,2%	50 N/mm
Elongation at Break,3%	80 N/mm

Applications

Coil wrapping machines (especially aluminum and stainless steel coils)
Stretch film or protective film applicators
Down coilers or upenders
Surface-sensitive coil conveying
Edge-wrapping systems
Automatic packaging lines in rolling mills

Comparison with Other Coil Wrapper Belts

Type	Felt Seamless TPU	Solid Woven Seamless	Ply Conveyor Belt
Surface Protection	Best	Moderate	Low
Seamless Design	Yes	Yes	No
Noise Reduction	Very Low	Low	High
Durability	Moderate	High	High
Initial Cost	High	Medium–High	Low
Ideal for Soft Metals	Yes	Yes	No

Customization Options

Felt type: Synthetic felt, wool-blend felt, heat-resistant felt
TPU color and hardness
Thickness and width
Anti-static or ESD treatment
Grooved or plain felt surface
Double-layered or multi-layer construction

Would you like assistance in sourcing manufacturers, samples, or a custom drawing based on your coil size and machine specifications?
