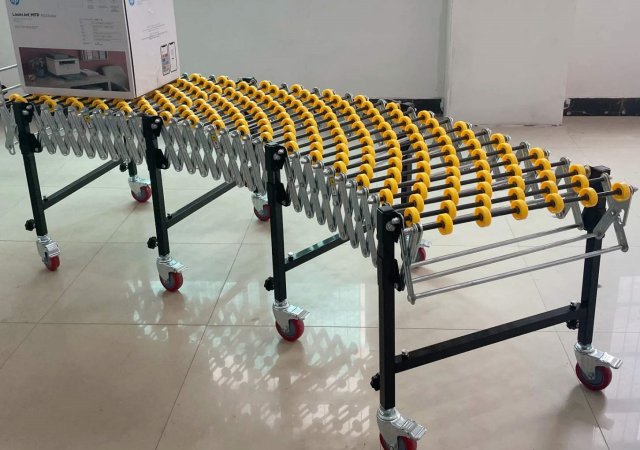

FGWP Flexible Skate Wheel Conveyor

The FGWP flexible skate wheel conveyors is a type of portable flexible gravity conveyors which use plastic wheel rollers as the supporting rollers. It is a small and medium duty conveyor and its maximum loading bearing capacity is 40Kg/m.

Flexible Skate Wheel Conveyor Catalog

FGWP Flexible Skate Wheel Conveyor
FGWP Flexible Skate Wheel Conveyor

About FGWP Flexible Skate Wheel Conveyor

  • It is often chosen to convey flat bottom items in harbor, dock, warehouse/storehouse, factory, etc.
  • It can take curve flexibly even in zigzag narrow aisles.
  • The crossed skate wheels make sure that conveyed goods will be automatically oriented and not fall down from sides.
  • The conveyor largely facilitates goods delivery work.

Drawings & Layout

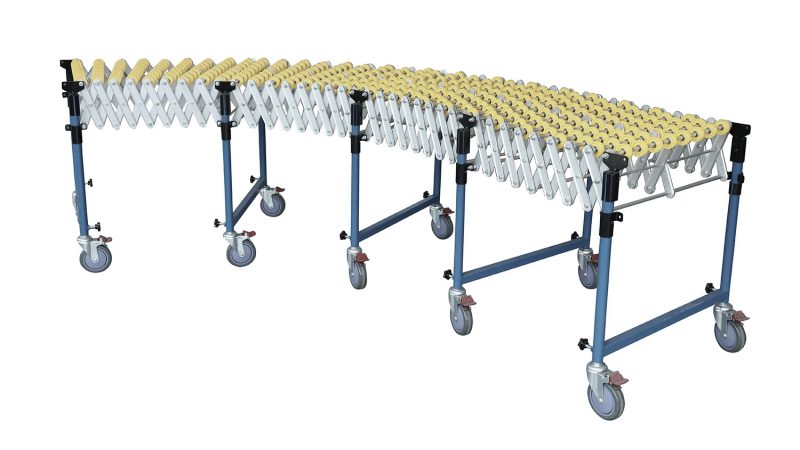

flexible skate wheel conveyor layout

This picture is simple layout of flexible skate wheel conveyor layout.

Product Details

flexible skate wheel conveyor
End package stop guard to protect goods from falling off.
flexible skate wheel conveyor
Side link plates which can extend and close fluently.
flexible skate wheel conveyor
Mounted on 100mm swivel lockable castors for moving.
flexible skate wheel conveyor
High quality plastic wheels for supporting application.
flexible skate wheel conveyor
Easy shippment, one 20GP can load about 49 sets.
flexible skate wheel conveyor
The leg kits are packed in an individual carton.

Data Sheet

Effective Width 450mm, 600mm
Adjustable Height 700-1000mm, 800-1200mm
Max.Load 40kg/m
Bearings Enclosed Steel Ball Bearings
Supporting Leg powder coated frame, round steel pipe or square steel pipe
Wheels self-tracking plastic wheel rollers
Axle centers 1-1/4" to 4"
Minimum package size 7"
Max. Loading Bearing Capacity 40Kg/m
Caster Dia 100mm(4") heavy duty lockable swivel polyurethane casters

Model Close Length Open Length
FGW-P2.5 860mm 2500mm
FGW-P3.6 1200mm 3600mm
FGW-P4.7 1540mm 4700mm
FGW-P5.8 1880mm 5800mm
FGW-P6.9 2220mm 6900mm
